Car Track



In order to achieve the effect of two independent cars racing around an oval track, we used a system of two stacked v-belt pulleys. The system is built from laser cut masonite, steel corner braces, wooden dowels, limit switches, large flat washers, and dc motors.

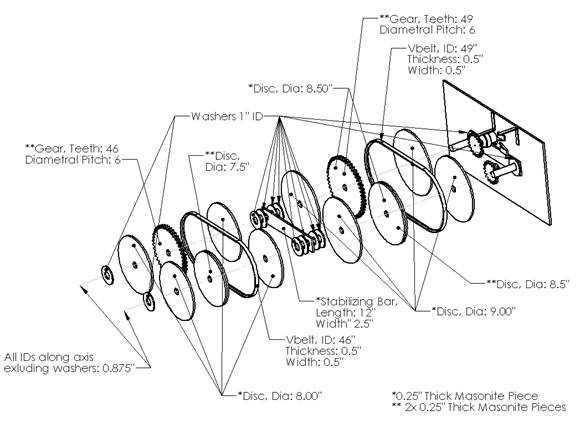

Each pulley is constructed from a small drive gear mounted on a shaft hub, a larger gear, a large pulley disc of equal diameter, a drive motor mounted on a corner brace, and a v-belt. The v-belt is slung around both the large gear and the large pulley disc to form an oval shape. The belt is constrained on the gear and pulley by larger discs affixed on both faces of the gear and the pulley disc. Both the gear and pulley disc are mounted onto two wooden dowels embedded perpendicularly into a 1’ x 2’ masonite base plate.















Flat metal washers are used for spacing. The drive gear is mounted on the motor shaft using a shaft hub. Due to imperfections in masonite thickness and construction, the drive motors are mounted with hose clamps on corner braces affixed to the base plate. This allows the drive gear to be adjusted for acceptable meshing. By locating all components within the area enclosed by the v-belts, two of these pulley systems can be stacked on top of each other without the complications of twisting wires and colliding parts. Space permitting, a third or forth car could be added.



Receiving various PWM signals from the C32, the motors are able to drive the pulleys at several distinct speeds. The cars were propped up off of each v-belt using reinforced drinking straws. The straws allow enough flex to accommodate for some inconsistencies around the track edges while providing enough support to prevent the cars from drooping. The straws also serve as the mechanical triggers for two limit switches, which are used to sense when each car completes a lap.











Speedometer























The speedometer is a HiTec HS-311 analog servo controlled by a PWM signal from the C32. The PWM duty cycle is varied to reflect the speed of the player controlled car – the faster the car, the higher the duty cycle and vice versa. The player car can reach a maximum speed of 240mph and never drops below 20mph even when at a standstill.



Electrical

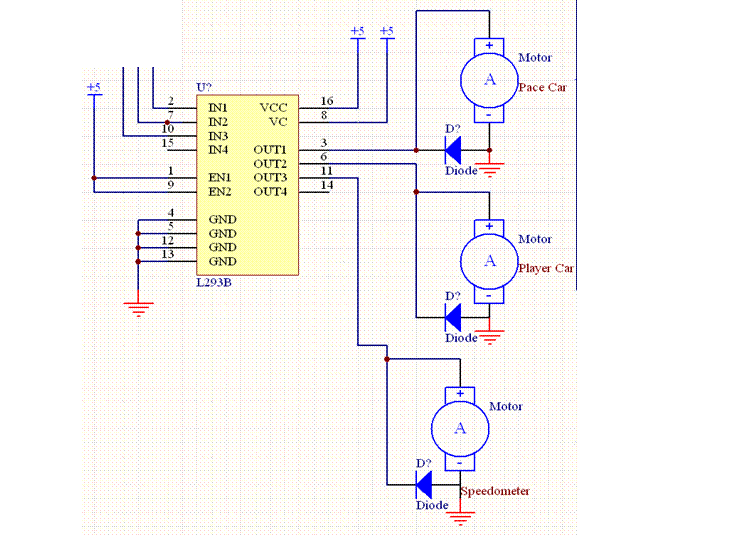

Schematic of pacer, player and speedometer motors













Schematic of player and pacer car finish limit switches
