Brief explanation of each module’s purpose:

Helm Communication – Handles game state machine and helm communication with admiral. Acquires user inputs via SPI from the Control Input Board. Sends navigation commands to Craft Com Board.

Helm Control Inputs - Runs A->D on analog inputs. Aggregates all user inputs and sends them over SPI to Helm Com Board.

Helm Display- Writes out appropriate numbers to a shift register in order to indicate controlling boat number, team affiliation, and active base. This code is implemented on the Com PIC and runs inside the Helm Communication module.

Craft Communications- Handles game state machine and craft communication with admiral. Relays navigation commands received from helm and transmits them by SPI to the Acutator Control Board.

Craft Prop/Pump- One of two PICs on the Actuator Control Board. Receives SPI commands from the Craft Com Board. Accordingly sets the propeller direction and PWM and the pump PWM.

Craft Rudder/Turret- One of two PICs on the Actuator Control Board. Receives SPI commands from the Craft Com Board. Accordingly sets the servo pulse width for the rudder and runs the stepper motor for the turret.

iButton- This code is placed in both Com Boards to read an iButton and populate three data registers with the serial number of the iButton.

SPIMaster- This code is used to test any other module that receives SPI as a Slave. Writes out known values to its slave.

Back to Top!

------------------------------------------------------------------------------------------------------------------------------------------------------------

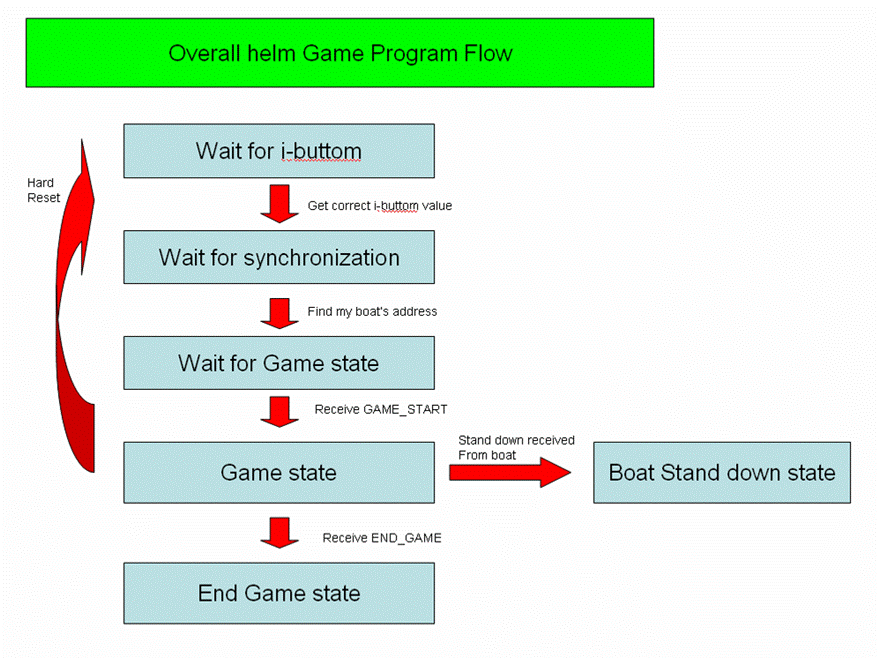

Helm Program Flow

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Helm Communication PIC Pseudocode

;variables

bytes_to_ignore equ 0x22   ;to store the address information received

message_received equ 0x23  ;to store the data received

message_to_send equ 0x24  ;to store the data to send

RFdata0_received equ 0x25   ;to store the data received

RFdata1_received equ 0x26   ;to store the data received

RFdata2_received equ 0x27   ;to store the data received

RFdata0_to_send equ 0x28   ;to store the data to_send

RFdata1_to_send equ 0x29   ;to store the data to_send

RFdata2_to_send equ 0x2A   ;to store the data to_send

Source_Address_First equ 0x2B ;the most significant byte to address

Source_Address_Second equ 0x2C ;the least significant byte to address

Destination_Address_First equ 0x2D ;the most significant byte to address

Destination_Address_Second equ 0x2E ;the least significant byte to address

ten_sec_timer_CNT1 equ 0x2F

ten_sec_timer_CNT2 equ 0x30  ;CNT1 * CNT2 = total count

#define ten_sec_timer_PER1 0x26  ;=38

#define ten_sec_timer_PER2 0x0A  ;=10  ;total target count = 38*10 = 380

ten_sec_TimeUp equ 0x31  ;the flag to indicate that 10s time is up, when = 0xff

Goal_Color equ 0x32; bit 6,7 indicate which base is active, the other bits are 0

temp equ 0x33; temporary space to store intermediate data

sum equ 0x34   ;to store the sum value

check_sum equ 0x35    ; to store the check sum value

MyBoatAddress equ 0x36  ;to store the least significant byte of paired boat address

GameState equ 0x37  ;game state

W_TEMP equ 0x70     ; to store w value for interrupts return

STATUS_TEMP equ 0x71  ; to store STATUS value for interrupts return

ReceiveIndex equ 0x3F ;the index to indicate where I am in the 11 byte frame

#define RX_START 0x40 ;Location of first byte received

;all addresses in between are used

#define RX_END 0x4B ;Location of last byte received

COUNTER equ 0x60

COUNTER2 equ 0x61

Navi equ 0x63

Speci equ 0x64

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;i-buttom variables and #defines;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

#define IBUTTON_PORT  PORTA

#define IBUTTON_PIN    0

#define TRISIBUTTON    TRISA

#define IBUTTON_INPUT  0x01

#define IBUTTON_OUTPUT  0x00

#define IBUTTON_HI   0x01

#define IBUTTON_LO   0x00

FIRST_BYTE  equ    0x66

SECOND_BYTE  equ    0x67

THIRD_BYTE  equ    0x68

TEMP   equ    0x69

SECOND_BYTE_CHECK  equ    0x6A

THIRD_BYTE_CHECK  equ    0x6B

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;variables and #defines for team display on helm;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

#define SHIFT_PORT PORTC

#define SHIFT_DATA_BIT 3

#define SHIFT_CLOCK_BIT 4

CRAFT_NUMBER equ  0x6C

CRAFT_TEAM  equ  0x6D ; bit 0 high for red, low for blue - can be taken from somewhere else later

#define TENS_BIT 4 ;bit in assembled bytethat controls the tens place on the display

#define RED_TEAM_BIT 5 ;bit in assembled byte to indicate blue team

#define BLUE_TEAM_BIT 6 ;bit in assembled byte to indicate red team

ASSEMBLED_BYTE equ  0x6E ;byte to shift out

org 0

goto Main

org 4

goto ISR

org 5

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;program starts;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Interrupt service routine:

ISR:

Save current w register value

Save current STATUS register value

Check if the interrupt is caused by SCI or Timer0 overflow

If (caused by SCI), use RF data process service routine

If (caused by Timer0), use 10 sec timer process service routine

RF receive interrupt service routine:

store the received RF data in the proper place of array in RAM

Load ReceiveIndex to FSR

movwf FSR

Read data from RCREG, store the data in INDF(address is determined by the value of ReceiveIndex)

Test if the data received is the start byte

If yes, ReceiveIndex = RAM place for second RF byte

Else increase ReceiveIndex

If ReceiveIndex = RAM place for last RF byte, ReceiveIndex = RAM place for first RF byte

End of RF receive interrupt service routine

timer0 interrupt service routine, for 10 sec time out:

increase three_sec_timer_CNT

if ten_sec_timer_CNT1 = 38:

clear ten_sec_timer_CNT1

increase ten_sec_timer_CNT2

endif

if ten_sec_timer_CNT2 = 10:

clear ten_sec_timer_CNT2

write 0xff to ten_sec_TimeUp, indicating a 10 sec time up

endif

clear TIMER0 overflow flag

End of timer0 interrupt service routine

Restore the value of STATUS register

Restore the value of w register

Return from interrupt

End of INT function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Function to move address and data information into variables:

Get_Data_Function:

Save the most significant byte of the sender’s address in variable Source_Address_First

Save the least significant byte of the sender’s address in variable Source_Address_Second

Save the first byte of the 3 bytes of real data in variable RFdata0_received

Save the second byte of the 3 bytes of real data in variable RFdata1_received

Save the third byte of the 3 bytes of real data in variable RFdata2_received

Return

End of Get_Data_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Function to erase address and data information

once this function is called, all 0s will be returned from Get_data_function, unless there has been another RF transmission received

Erase_Data_Function:

Write all 0’s to the RF data recording array in RAM

Return

End of Erase_Data_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

initialization function

Init:

initilize variables:

set the value of ReceiveIndex to point to where the starting byte of RF frame is stored

initialize timer 1, use internal oscillator by default

set timer 1 prescale to be 1:8

turn on timer 1

set port CCP1 for output compare

initialize timer 2, for output compare

set prescale and postscale of timer2 to be 16, and turn on timer2

set port A, B, C as non-analog pins

set port A, B, C as non-analog pins

set RC6 as output to do slave select

set RC7 for SPI output

RC0 is general input, for determine whether the data received from control pannel is Navigation or Special Function byte

set RB6 as output for SPI clock

set RB4 as input for SPI in

;RC1, RC2 are outputs to show active base on the helm

;RC3, RC4 are Outputs to the shift register to do the taem number and team color display on the helm

set PA0 as input for i-buttom reading

initiate SCI:

set baud rate to be 9600:

BRGH=0

Use asynchronous communication

BRG16 ;BRG16=1

SPBRG = 64

baud rate = 9615

enable SPI transmission

enable serial port

enable SPI receiving

initiate SPI:

setting timer2:

TMR2 freq = Fosc/64/49

 turn on timer2, prescaler 1:16, post scaler 1:1

SMP = 0, CKE = 0

SSPEN, CKP=1, CLK freq = TMR2 output/2

Clear SPI receive register full falg

select drive-pump control PIC

send out boat stop signal to the PIC controlling the actuators

Clear SPI Receive Register:

interrupts enables:

enable gloable interrupt enable

enable peripheral interrupt enable

enable SCI receive interrupt

goal color LEDs both off

return

End of function initialization

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

data transmit function

Transmit_Function:

check timer, ensure that this transmit is more than 200ms later than last one

send start byte, wait for transmission over by calling wait_for_transmssion_over

send LENGTH_MSB, wait for transmission over

send LENGTH_LSB, wait for transmission over

send API_TX, wait for transmission over

send FRAME_ID, wait for transmission over

send Destination_Address_First, wait for transmission over

send Destination_Address_Second, wait for transmission over

send 0x01 for the option byte, wait for transmission over

send RFdata0_to_send, wait for transmission over

send RFdata1_to_send, wait for transmission over

send RFdata1_to_send, wait for transmission over

calculate check sum value

send check sum value, wait for transmission over

clear timer 1 flag

return

end of Transmit_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

the function to wait until the trasmit shift register of PIC is empty

wait_for_transmssion_over:

keep reading TRMT flag in TXSTA, until it is set

return

end of function wait_for_transmssion_over

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

data transmit function without waiting for 200 ms after last transmission

No_Wait_Transmit_Function:

send start byte, wait for transmission over by calling wait_for_transmssion_over

send LENGTH_MSB, wait for transmission over

send LENGTH_LSB, wait for transmission over

send API_TX, wait for transmission over

send FRAME_ID, wait for transmission over

send Destination_Address_First, wait for transmission over

send Destination_Address_Second, wait for transmission over

send 0x01 for the option byte, wait for transmission over

send RFdata0_to_send, wait for transmission over

send RFdata1_to_send, wait for transmission over

send RFdata1_to_send, wait for transmission over

calculate check sum value

send check sum value, wait for transmission over

return

end of Transmit_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;i-buttom functions;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

End of i-buttom functions

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;Functions to display team NO and clor on helm;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

End of Functions to display team NO and clor on helm

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;Game Control Function;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

the master game control function of the helm:

Game_Control:

Check the value of GameState

Case WaitForIbuttom, use Wait_For_Ibuttom_State service

Case WaitForSync, use Wait_For_Sync_State service

Case WaitForGame, use Wait_For_Game_State service

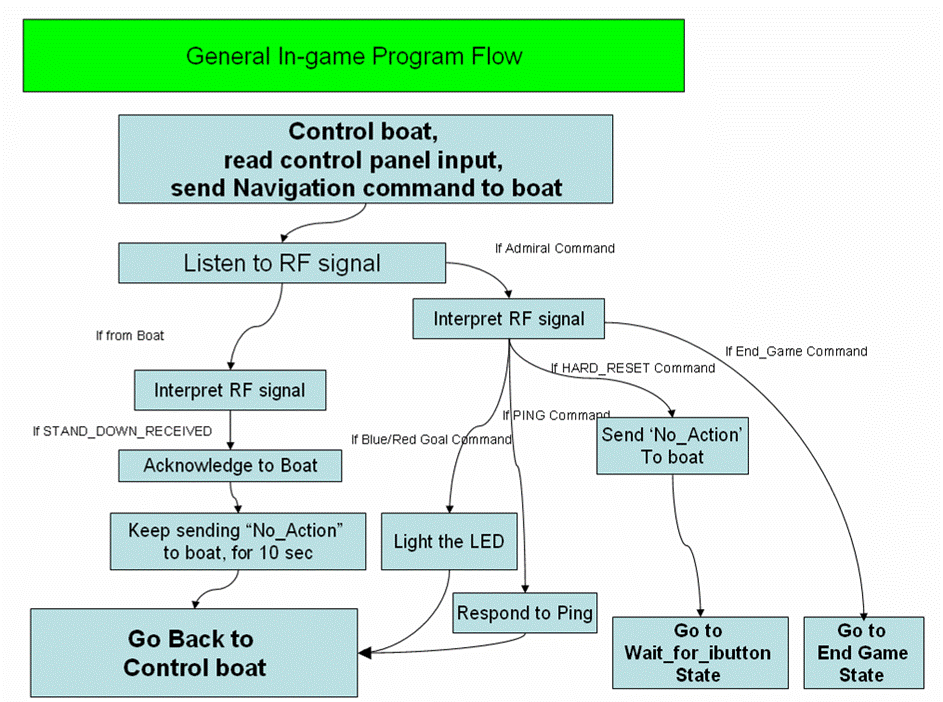

Case Game, use Game_State service

Case HardReset, use Hard_Reset_State service

Case BoatStandDown, use Boat_Stand_Down_State service

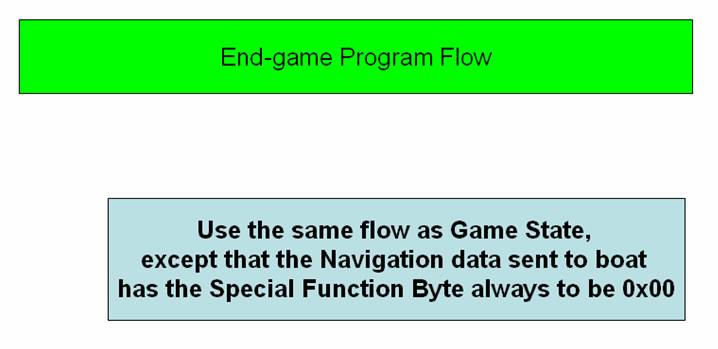

Case EndGame, use End_Game_State service

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;Game State Functions;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

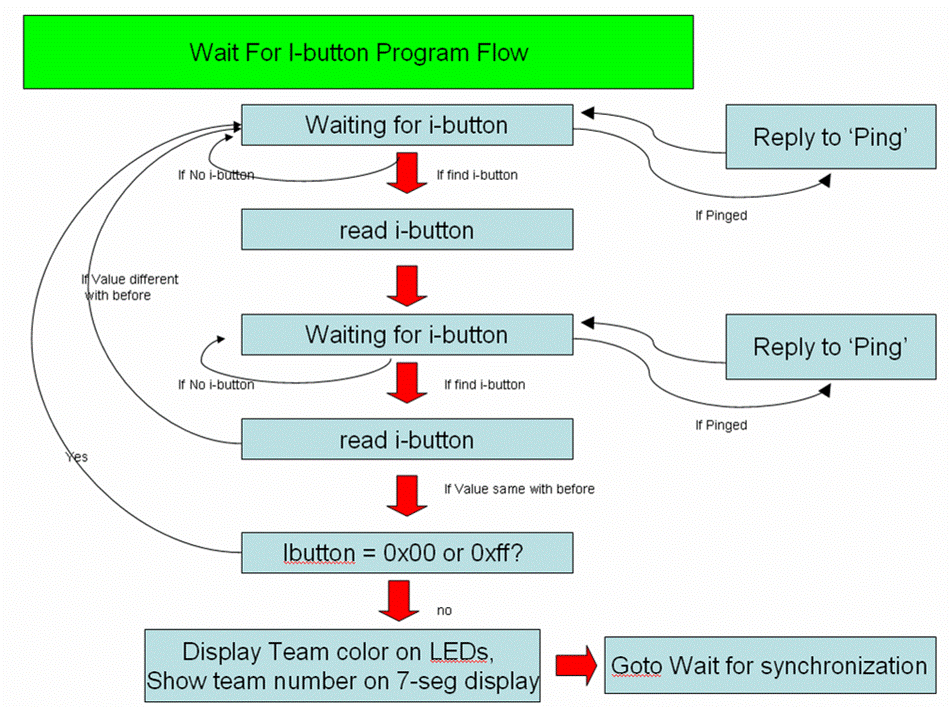

the wait for ibuttom state

Wait_For_Ibuttom_State:

Keep waiting for first ibuttom read in, store the first i-buttom reading also in another place for later comparison

Keep waiting for second ibuttom read in

Keep waiting for third ibuttom read in

If the three times get the same value, and the value is neither 0xff nor 0x00, store ibuttom data, return from this function

Else go back to the start of this function

End of Wait_For_Ibuttom_State

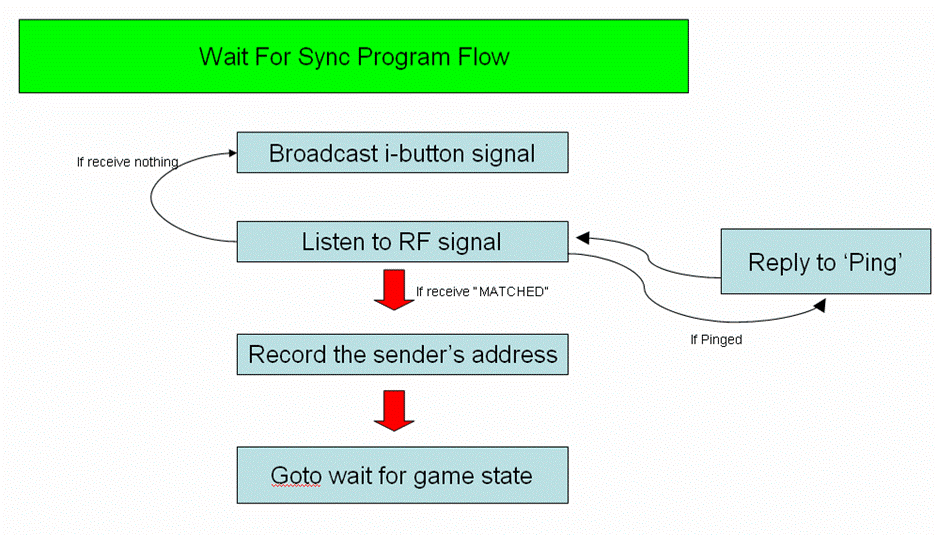

Once read i-buttom, broadcast i-buttom, until sense a match from my boat

Wait_For_Sync_State:

broadcast i-buttom signal

call Get_Data_Function

check the value of RFdata0_received:

if WATERCRAFT, goto respond_boat

if ADMIRAL, goto respond_admiral

return

respond_boat:

check if the signal from the boat is a matched signal:

if yes, record the boat’s address in MyBoatAddress

display team number and color on the helm:

write the value of MyBoatAddress in CRAFT_NUMBER

write the value of SECOND_BYTE in CRAFT_TEAM

call  TRANSLATE ;takes craft number in binary (lower nibble) translates to 5 bits for BCD

call ADD_TEAM ;adds team affiliation to assembled byte

call SHIFT_BYTE ;shift byte out on C0-1

set GameState to be WaitForGame

end of respond_boat

respond_admiral:

check if the signal is a ping request

if yes, call Ping_Respond_Function

call Erase_Data_Function

return

End of Wait_For_Sync_State

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

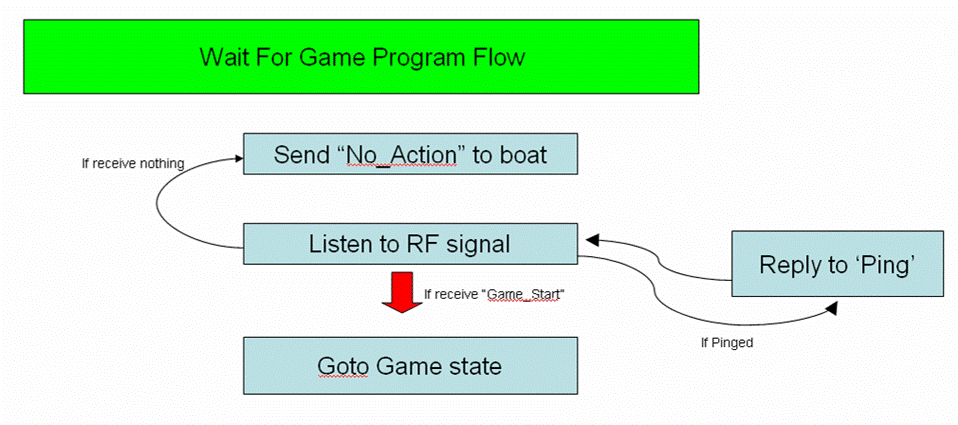

Wait_For_Game_State:

check is there is Ping, StartGame command from admiral or i-buttom matched signal from my boat:

call check_signal

call StopBoat

return

check_signal:

call Get_Data_Function

check if the signal is from admiral

if yes, goto ping_or_startgame  ;if from admiral, it could be ping or start game command

return

ping_or_startgame:

check if the signal is for game start

if yes, goto case_start_game, which will then change game state to 'game'

check if the signal is for ping

if is for ping, then respond to the admiral

return

case_start_game:

first erase signal in array to avoid multiple acknowledgements

call Erase_Data_Function

acknowledge GAME_START to the admiral

change game state to 'game'

return

End of Wait_For_Game_State

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

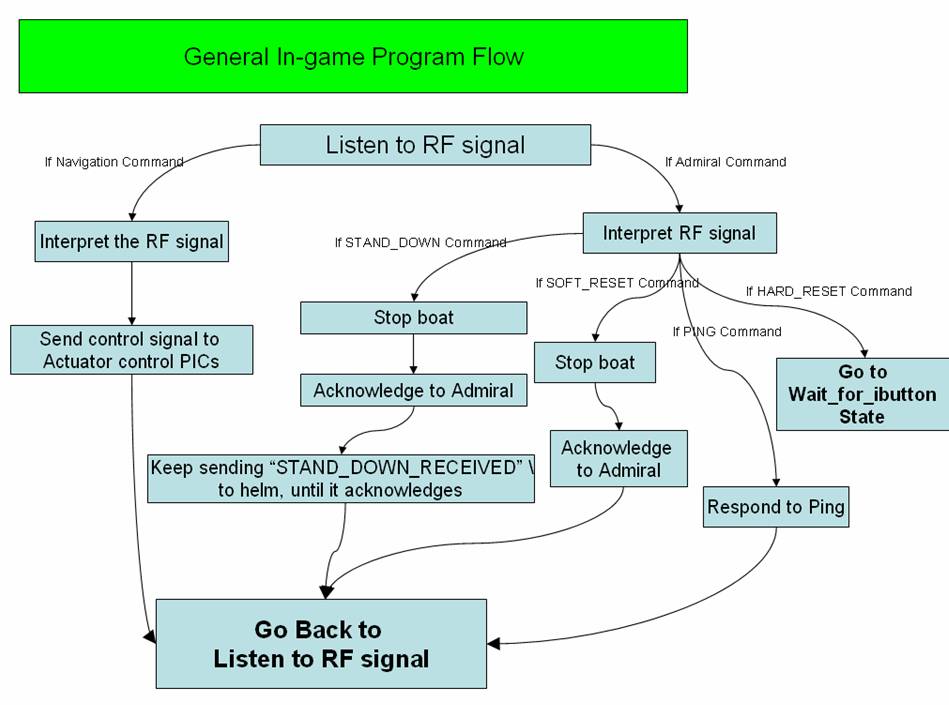

;general in-game state

Game_State:

call Get_Data_Function

check if the signal is from boat

if (is WATERCRAFT), call WaterCraft_Respond_Function function, else keep checking if it's other situation

check if the signal is from Admiral

if (is Admiral), call Admiral function, else keep checking if it's other situation

call Boat_Control to send control signal through ZigBee to my boat

return

End of function Game_State

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

End_Game_State:

almost everything is the same with in-game state, except Boat_Control will check the game state and decide wether to activate special functions

call Game_State

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

2 possible commands the helm is likely to receive and respond to: from watercraft and admiral

WaterCraft_Respond_Function:

Check if the signal is STAND_DOWN_RECEIVED, if yes, goto case_BoatStandDown

Else return from function

case_BoatStandDown:

clear the received RF data, so later I can check if there is a new transmission from my boat

call Erase_Data_Function

acknowledge to the boat

start timing for 10 sec, LEDs start flashing:

call Turn_On_10s_Timer

change GameState to ‘BoatStandDown’

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Admiral_Function:

check if the signal received is BLUE_GOAL, if yes, goto case_BLUE_GOAL

check if the signal received is RED_GOAL, if yes, goto case_RED_GOAL

check if the signal received is ADMIRAL_PING, if yes, goto case_admiral_ping

check if the signal received is HARD_RESET, if yes, goto case_hard_reset

check if the signal received is END_GAME, if yes, goto case_END_GAME

return

case_BLUE_GOAL:

light the blue LED:

set bit 7 of Goal_Color

clear bit 6 of Goal_Color

set RC1

clear RC2

return

case_RED_GOAL

light the red LED:

set bit 6 of Goal_Color

clear bit 7 of Goal_Color

set RC2

clear RC1

return

case_HARD_RESET:

change GameState to ‘HardReset’

return

case_ADMIRAL_PING:

call Erase_Data_Function

call Ping_Respond_Function

return

case_END_GAME

call Erase_Data_Function

acknowledge to the admiral

change GameState to ‘EndGame’

return

end of Admiral_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

get the command from control panel through SPI

send out navigation command to boat in 5Hz rate

decide wether to activate special function based on wether in Game state or End-Game state

Boat_Control:

first check whether GameState is ‘Game’ of ‘EndGame’, if ‘Game’, activate spetial function, else deactivate

else stop the boat

return

special_fun_on:

get the command from the control panel by calling Get_Control_Sig

send the control signal to Zigbee with special functions on

return

special_fun_off:

get the command from the control panel by calling Get_Control_Sig

send the control signal to Zigbee with special functions off

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

the function to get signal from the control pannel through SPI

Get_Control_Sig:

Send Data through SPI, start SPI clock

Wait for receive complete

Get received data

Check the state of RC0 read in, if High, meaning this is navigation byte, goto Get_Navi

If low, meaning this is special function byte, goto Get_Speci

Get_Navi:

Store the received data from SPI in Navi

RETURN

Get_Speci

Store the received data from SPI in Speci

RETURN

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

GameState_equ_ibuttom:

Change GameState to ‘WaitForIbuttom’

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Boat_Stand_Down_State:

call Get_Data_Function

check if there is a new data from my boat:

if not, goto Check_Timer, else check if the data is another STAND_DOWN_RECEIVED:

if not goto Check_Timer, else clear the received RF data, so later I can check if there is a new transmission from my boat

if receive another STAND_DOWN_RECEIVED from my boat:

call Erase_Data_Function

acknowledge to the boat again

return

Check_Timer:

;call StopBoat

check 10 sec time up flag

if time is not up, return from function

if time up, call Turn_Off_10s_Timer, clear 10 sec timer flag, change GmeState to ‘Game’

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

start to count for 10 seconds, when time up, ten_sec_TimeUp will change to 0xff

Turn_On_10s_Timer:

start 10 sec timer:

set the slowest option

clear ten_sec_TimeUp

clear ten_sec_timer_CNT1

clear ten_sec_timer_CNT2

enable timer0 interrupt

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

stop timer, reset time up flag and counters

Turn_Off_10s_Timer:

stop 10 sec timer

turn off timer 0

clear ten_sec_TimeUp

clear ten_sec_timer_CNT1

clear ten_sec_timer_CNT2

disable timer0 interrupt

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Hard_Reset_State:

call StopBoat to stop all actuators

game state go back to waiting for i-buttom

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Ping_Respond_Function:

Check GameState:

Case WaitForIbuttom, respond accordinglyreturn

Case WaitForSync, respond accordinglyreturn

Other Cases, respond accordinglyreturn

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Send out No_ACTION to boat in 5Hz rate

StopBoat:

send 0x02, 0x88, 0x00 to my boat

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Main function

Main:

Use some loops to delay for 16ms to wait for power up

call Init

initial game state to be ‘WaitForIbuttom’

Loop:

call Game_Control

goto Loop

END of program

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Helm Communication PIC Code Listing


list P=PIC16F690

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; Protocol Rev C constants
; note: use of MSB and LSB implies Byte, not Bit in this.
; Rev A, Brian Hachtmann, May 09 2008

 ; Framing
#define START_BYTE 0x7E
#define LENGTH_MSB 0x00
#define LENGTH_LSB 0x08

 ; API identifier
#define API_RX 0x81
#define API_TX 0x01

 ; Frame ID: change this to non-zero if you wish
 ; your xBee to respond with a Tx Status message
#define FRAME_ID 0x00

 ; Addresses
#define ADMIRAL_ADDRESS_MSB 0xBC
#define ADMIRAL_ADDRESS_LSB 0xFF

#define HELM_MSB 0xBC
#define CRAFT_MSB 0xAF

 ; for ME218C Data Byte 0 Header
#define IBUTTON 0x01
#define NAVIGATION 0x02
#define ADMIRAL 0x04
#define WATERCRAFT 0x08
#define PING_RESPONSE 0x10
#define ACK 0x80

 ; Admiral Messages
#define STAND_DOWN 0x01
#define START_GAME 0x02
#define END_GAME 0x04
#define BLUE_GOAL 0x08
#define RED_GOAL 0x10
#define SOFT_RESET 0x20
#define HARD_RESET 0x40
#define ADMIRAL_PING 0x80

 ; Commands from Helm to Watercraft
#define NO_ACTION_1 0x88
#define NO_ACTION_2 0x00

 ; Commands from Watercraft to Helm
#define STAND_DOWN_RECEIVED_1 0x00
#define STAND_DOWN_RECEIVED_2 0x02

#define MATCHED_1 0x00
#define MATCHED_2 0x01

 ; Ping Responses
#define WAITING_IBUTTON 0x01
#define WAITING_PAIR 0x02
#define PAIRED 0x04

 ;game states
#define WaitForIbuttom 0x01
#define WaitForSync 0x08
#define WaitForGame 0x02
#define Game 0x03
#define HardReset 0x04
#define BoatStandDown 0x05
#define Ping 0x06
#define EndGame 0x07

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


#include "p16F690.inc"
__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC)

;variables
bytes_to_ignore equ 0x22 ;to store the address information received
message_received equ 0x23 ;to store the data received
message_to_send equ 0x24 ;to store the data to send
RFdata0_received equ 0x25 ;to store the data received
RFdata1_received equ 0x26 ;to store the data received
RFdata2_received equ 0x27 ;to store the data received
RFdata0_to_send equ 0x28 ;to store the data to_send
RFdata1_to_send equ 0x29 ;to store the data to_send
RFdata2_to_send equ 0x2A ;to store the data to_send
Source_Address_First equ 0x2B ;the most significant byte to address
Source_Address_Second equ 0x2C ;the least significant byte to address
Destination_Address_First equ 0x2D ;the most significant byte to address
Destination_Address_Second equ 0x2E ;the least significant byte to address

ten_sec_timer_CNT1 equ 0x2F
ten_sec_timer_CNT2 equ 0x30 ;CNT1 * CNT2 = total count
#define ten_sec_timer_PER1 0x26 ;=38
#define ten_sec_timer_PER2 0x0A ;=10 ;total target count = 38*10 = 380
ten_sec_TimeUp equ 0x31 ;the flag to indicate that 10s time is up, when = 0xff

Goal_Color equ 0x32; bit 6,7 indicate which base is active, the other bits are 0

temp equ 0x33; temporary space to store intermediate data
sum equ 0x34 ;to store the sum value
check_sum equ 0x35 ; to store the check sum value

MyBoatAddress equ 0x36 ;to store the least significant byte of paired boat address
GameState equ 0x37 ;game state

W_TEMP equ 0x70 ; to store w value for interrupts return
STATUS_TEMP equ 0x71 ; to store STATUS value for interrupts return

ReceiveIndex equ 0x3F ;the index to indicate where I am in the 11 byte frame
#define RX_START 0x40 ;Location of first byte received
;all addresses in between are used
#define RX_END 0x4B ;Location of last byte received

COUNTER equ 0x60
COUNTER2 equ 0x61

Navi equ 0x63
Speci equ 0x64

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;i-buttom variables and #defines;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

#define IBUTTON_PORT PORTA
#define IBUTTON_PIN 0
#define TRISIBUTTON TRISA

#define IBUTTON_INPUT 0x01
#define IBUTTON_OUTPUT 0x00
#define IBUTTON_HI 0x01
#define IBUTTON_LO 0x00

FIRST_BYTE equ 0x66
SECOND_BYTE equ 0x67
THIRD_BYTE equ 0x68
TEMP equ 0x69
SECOND_BYTE_CHECK equ 0x6A
THIRD_BYTE_CHECK equ 0x6B


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;variables and #defines for team display on helm;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

#define SHIFT_PORT PORTC
#define SHIFT_DATA_BIT 3
#define SHIFT_CLOCK_BIT 4


CRAFT_NUMBER equ 0x6C
CRAFT_TEAM  equ 0x6D ; bit 0 high for red, low for blue - can be taken from somewhere else later

#define TENS_BIT 4 ;bit in assembled bytethat controls the tens place on the display
#define RED_TEAM_BIT 5 ;bit in assembled byte to indicate blue team
#define BLUE_TEAM_BIT 6 ;bit in assembled byte to indicate red team
ASSEMBLED_BYTE equ 0x6E ;byte to shift out


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;program starts;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

org 0
goto Main
org 4
goto ISR
org 5

;interrupt service routine
ISR: ;push
 movwf W_TEMP
 swapf STATUS, w
 movwf STATUS_TEMP

;test is RF receive interrupt
 banksel PIR1 ;bank 0
 btfsc PIR1, RCIF
 goto RF_Receive_INT
;test if timer0 interrupt
 btfsc INTCON, T0IF
 goto Timer_INT
;else jump out of interrupt
 goto end_of_INT

;RF receive interrupt service routine
RF_Receive_INT:
banksel RCREG ;go to bank 0

 movf ReceiveIndex,W ;Load ReceiveIndex to FSR
 movwf FSR

 banksel  RCREG
 movf  RCREG,W ;Read data to W

 movwf INDF ;Store data in proper place
; sublw START_BYTE
; btfss STATUS,Z ;Test for a start byte
; goto end_of_INT
 call IncReceive ;Already in bank 0
 goto end_of_INT

;
; Increments the ReceiveIndex variable to the next valid memory location
;

IncReceive:
 banksel  RCREG
 movf ReceiveIndex,W ;Test to see if index is at the end of
 sublw RX_END ;receive registers
 btfsc STATUS,Z ;If it is, load RX_START-1 into receive index
 call CarryReceive
 incf ReceiveIndex,F ;If index is not at end, increment receive index

 return

;
; Called when Receive Index needs to be reset
;

CarryReceive:
 movlw RX_START-1
 movwf ReceiveIndex
 return

;timer0 interrupt service routine
Timer_INT:
;toggle RC1 for debug
 banksel PORTC
 movf PORTC, w
 xorlw b'00000010'
 movwf PORTC

 BANKSEL ten_sec_timer_CNT1
 INCF ten_sec_timer_CNT1, f
 MOVF ten_sec_timer_CNT1,W
 SUBLW ten_sec_timer_PER1
 BTFSS STATUS,Z
 goto end_of_timer0_INT

 banksel PORTC
 movf PORTC, w
 xorlw b'00000100'
 movwf PORTC

 CLRF ten_sec_timer_CNT1

 INCF ten_sec_timer_CNT2, f
 MOVF ten_sec_timer_CNT2,W
 SUBLW ten_sec_timer_PER2
 BTFSS STATUS,Z
 goto end_of_timer0_INT

;if ten_sec_timer_CNT1 = 38 and ten_sec_timer_CNT2 = 10:
 CLRF ten_sec_timer_CNT2
 movlw 0xFF
 movwf ten_sec_TimeUp ;set this value so the main program know that 10-second time is up

end_of_timer0_INT:
;clear TIMER0 flag
 bcf INTCON, T0IF
 goto end_of_INT

end_of_INT:

 swapf STATUS_TEMP, w
 movwf STATUS
 swapf W_TEMP, f
 swapf W_TEMP, w
 RETFIE
;end of INT function

;function to move address and data infromation into variables
Get_Data_Function:
 banksel RCREG ;bank 0
 movlw 0x44
 movwf FSR
 movf INDF,W
 movwf Source_Address_First

 movlw 0x45
 movwf FSR
 movf INDF,W
 movwf Source_Address_Second

 movlw 0x48
 movwf FSR
 movf INDF,W
 movwf RFdata0_received

 movlw 0x49
 movwf FSR
 movf INDF,W
 movwf RFdata1_received

 movlw 0x4A
 movwf FSR
 movf INDF,W
 movwf RFdata2_received
return

;function to erase address and data infromation
;once this function is called, all 0s will be returned from Get_data_function, unless there has been another transmission
Erase_Data_Function:
 banksel RCREG ;bank 0
 movlw 0x44
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x45
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x48
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x49
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x4A
 movwf FSR
 movlw 0x00
 movwf INDF
return

;initialization function
Init:
;init variables:
banksel RCREG ;bank 0
movlw RX_START
movwf ReceiveIndex

;initialize timer 1, use internal oscillator by default
BSF T1CON, T1CKPS0 ;set timer 1 prescale to be 1:8
BSF T1CON, T1CKPS1
BSF T1CON, TMR1ON ;turn on timer 1

BcF CCP1CON, CCP1M0 ;set port CCP1 for output compare
BsF CCP1CON, CCP1M1
BcF CCP1CON, CCP1M2
BsF CCP1CON, CCP1M3

;initialize timer 2, for output compare
movlw b'11111111'
movwf T2CON ;set prescale and postscale of timer2 to be 16, and turn on timer2

;Pin initialization
;go to bank 2
BCF STATUS, 5
BSF STATUS, 6
clrf ANSEL ;set port A, B, C as non-analog pins
clrf ANSELH ;set port A, B, C as non-analog pins

;go to bank 1
BSF STATUS, 5
BCF STATUS, 6
;set RC6 as output to do slave select
;set RC7 for SPI output
;RC5 is input capture for transmitting start
;RC0 is general input, for determine whether the data received from control pannel is Navigation or Special Function byte
;RC1, RC2 are outputs to show active base on the helm
;RC3, RC4 are Outputs to the shift register to do the taem number and team color display on the helm
MOVLW b'00100001'
MOVWF TRISC
;set RB6 as output for SPI clock
bcf TRISB, 6
;set RB4 as input for SPI in
bsf TRISB, 4

;set PA0 as input for i-buttom reading
BSF TRISA, 0
;set PA1, PA2 as input, not used for now
BSF TRISA, 1
BSF TRISA, 2


;initiate SCI:
;currently in bank 1
;set baud rate to be 9600:
bcf TXSTA, BRGH ;BRGH=0
bcf TXSTA, SYNC ;asynchronous
bsf BAUDCTL, BRG16 ;BRG16=1
;caution! change this back to 0x40 when move the PIC to the Helm Xbee Board
movlw 0x40 ;SPBRG = 64
movwf SPBRG ;baud rate = 9615

bsf TXSTA, TXEN ;enable transmission

;go to bank 0
BCF STATUS, 5
BCF STATUS, 6

bsf RCSTA, SPEN ;enable serial port
bsf RCSTA, CREN ;enable receiving

;initiate SPI: ;not used for now, the setting is suitable for 10MHz crystal
;setting timer2:
banksel PR2
movlw 0x30 ;TMR2 freq = Fosc/64/49 ;change back to 30 later!
movwf PR2
banksel T2CON
movlw b'00000111' ;turn on timer2, prescaler 1:16, post scaler 1:1
movwf T2CON

 BANKSEL SSPSTAT
 CLRF SSPSTAT ;SMP = 0, CKE = 0

 BANKSEL SSPCON
 MOVLW 0x33 ;SSPEN, CKP=1, CLK freq = TMR2 output/2
 MOVWF SSPCON

 BANKSEL PIR1
 BCF PIR1,SSPIF
;go back to bank 0
 BANKSEL SSPBUF

 MOVF SSPBUF,w ;receive and transmit OFF for the first time
 MOVLW 0xFF
 MOVWF SSPBUF

ClearReceiveReg:
 BANKSEL RCREG ; Make sure that the receive register is clear
 MOVF RCREG,W
 BANKSEL PIR1
 BTFSC PIR1,RCIF
 GOTO ClearReceiveReg

;interrupts enables
banksel INTCON
bsf INTCON, GIE ;enable gloable interrupt enable
bsf INTCON, PEIE ;enable peripheral interrupt enable
banksel PIE1
bsf PIE1, RCIE ;enable SCI receive interrupt
banksel TXREG ;go back to bank 0
;PORTC output 0 upon initialization
movlw 0x00
movwf PORTC
;clear Goal_Color
movlw 0x00
movwf Goal_Color

return
;end of function initialization

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;data transmit function
Transmit_Function:
 banksel RCREG ;bank 0

back3:
 btfss PIR1, TMR1IF ;check timer, ensure that this transmit is more than 200ms later than last one
 goto back3

;send start byte
 movlw START_BYTE
 movwf TXREG
 call wait_for_transmssion_over

 movlw LENGTH_MSB
 movwf TXREG
 call wait_for_transmssion_over

 movlw LENGTH_LSB
 movwf TXREG
 call wait_for_transmssion_over

 movlw API_TX
 movwf TXREG
 call wait_for_transmssion_over

 movlw FRAME_ID
 movwf TXREG
 call wait_for_transmssion_over

 movf Destination_Address_First, w
 movwf TXREG
 call wait_for_transmssion_over

 movf Destination_Address_Second, w
 movwf TXREG
 call wait_for_transmssion_over

 movlw 0x01 ;0x01 for the option byte, to not request acknowledgement
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata0_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata1_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata2_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

;calculate check sum value
 movlw 0x00
 movwf sum
 movlw API_TX
 addwf sum, f
 movlw FRAME_ID
 addwf sum, f
 movf Destination_Address_First, w
 addwf sum, f
 movf Destination_Address_Second, w
 addwf sum, f
 movlw 0x01
 addwf sum, f
 movf RFdata0_to_send, w
 addwf sum, f
 movf RFdata1_to_send, w
 addwf sum, f
 movf RFdata2_to_send, w
 addwf sum, f
;check_sum = 0xff - sum
 movf sum, w
 sublw 0xff
 movwf check_sum

 movf check_sum, w
 movwf TXREG
 call wait_for_transmssion_over

 bcf PIR1, TMR1IF ;clear timer 1 flag
return

;the function to wait until the trasmit shift register of PIC is empty
wait_for_transmssion_over:
;goto bank 1
 BSF STATUS, 5
 BCF STATUS, 6

wait_transmssion:
 btfsc TXSTA, TRMT
 goto end_of_wait_transmssion
 goto wait_transmssion

end_of_wait_transmssion:
;go back to bank 0
 BCF STATUS, 5
 BCF STATUS, 6
return
;end of function wait_for_transmssion_over

No_Wait_Transmit_Function:
 banksel RCREG ;bank 0

;send start byte
 movlw START_BYTE
 movwf TXREG
 call wait_for_transmssion_over

 movlw LENGTH_MSB
 movwf TXREG
 call wait_for_transmssion_over

 movlw LENGTH_LSB
 movwf TXREG
 call wait_for_transmssion_over

 movlw API_TX
 movwf TXREG
 call wait_for_transmssion_over

 movlw FRAME_ID
 movwf TXREG
 call wait_for_transmssion_over

 movf Destination_Address_First, w
 movwf TXREG
 call wait_for_transmssion_over

 movf Destination_Address_Second, w
 movwf TXREG
 call wait_for_transmssion_over

 movlw 0x01 ;0x01 for the option byte, to not request acknowledgement
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata0_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata1_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata2_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

;calculate check sum value
 movlw 0x00
 movwf sum
 movlw API_TX
 addwf sum, f
 movlw FRAME_ID
 addwf sum, f
 movf Destination_Address_First, w
 addwf sum, f
 movf Destination_Address_Second, w
 addwf sum, f
 movlw 0x01
 addwf sum, f
 movf RFdata0_to_send, w
 addwf sum, f
 movf RFdata1_to_send, w
 addwf sum, f
 movf RFdata2_to_send, w
 addwf sum, f
;check_sum = 0xff - sum
 movf sum, w
 sublw 0xff
 movwf check_sum

 movf check_sum, w
 movwf TXREG
 call wait_for_transmssion_over

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;i-buttom functions;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

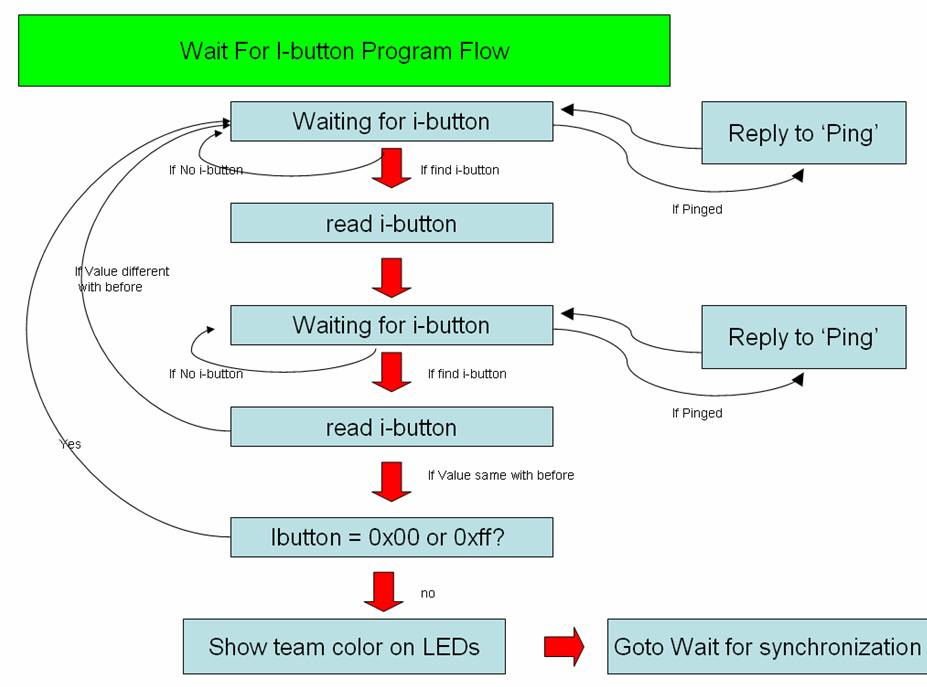

LoadIButtonBytes:
 ; Set Ports A and C to digital
 BANKSEL ANSEL
 CLRF ANSEL
 CLRF ANSELH

 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

WaitForIButton:
 ;CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

 ;CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Compensated_Wait500us
;;;;;;;;;;;;;;;code add by me to do admiral ping response;;;;;;;;;;;;;;;;;;;;;;
;the following code takes 15us to execute for 10MHz Crystal
 call Get_Data_Function
 movf RFdata0_received, w
 sublw ADMIRAL  ;check if the Header Data is for Admiral
 ;if (is Admiral), call Admiral function, else keep checking if it's other situation
 btfss STATUS, Z
goto No_ping


 movf RFdata2_received, w
 sublw ADMIRAL_PING ;check if the Header Data is for ADMIRAL_PING
 ;if (is ADMIRAL_PING), change game state
 btfsc STATUS, Z
goto No_ping
 call Erase_Data_Function
 call Ping_Respond_Function ;erase get_data value at the meantime

No_ping:
;;;;;;;;;;;;;;;code add by me to do admiral ping response;;;;;;;;;;;;;;;;;;;;;;

 ;CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
 MOVWF TRISIBUTTON
 CALL Wait50us

 ; Check if pin is LO --> iButton Present
 BANKSEL IBUTTON_PORT
 BTFSC IBUTTON_PORT,IBUTTON_PIN
 GOTO WaitForIButton ;Repeat until found

 ;Once found then:
 CALL ConductReset

 CALL ReadROM

 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit

 BANKSEL THIRD_BYTE
 MOVF THIRD_BYTE,0
 MOVWF FIRST_BYTE

 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
  CALL ReadBit
 CALL ReadBit
 CALL ReadBit

 BANKSEL THIRD_BYTE
 MOVF THIRD_BYTE,0
 MOVWF SECOND_BYTE

 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit

 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us

 return


ConductReset:
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait500us
; CALL RaiseIBUTTON
 BANKSEL IBUTTON_PORT
 BSF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait500us
 RETURN

ReadROM:
; Send ReadROM command
; Need to send 0x33 = 00110011, LSB first
 CALL SendIBUTTONHI
 CALL SendIBUTTONHI
 CALL SendIBUTTONLO
 CALL SendIBUTTONLO
 CALL SendIBUTTONHI
 CALL SendIBUTTONHI
 CALL SendIBUTTONLO
 CALL SendIBUTTONLO
 RETURN

ReadBit:
; Begin reading
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait5us

; CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
 MOVWF TRISIBUTTON

 CALL Wait5us
 CALL Wait5us


 BANKSEL IBUTTON_PORT
 BTFSC IBUTTON_PORT,IBUTTON_PIN
 GOTO RECEIVE_BIT_HI
 GOTO RECEIVE_BIT_LO
RECEIVE_BIT_HI:
 BANKSEL THIRD_BYTE
 RRF THIRD_BYTE,1
 NOP
 NOP
 BSF THIRD_BYTE,7
 CALL Wait60us
 RETURN

RECEIVE_BIT_LO:
 BANKSEL THIRD_BYTE
 RRF THIRD_BYTE,1
 NOP
 NOP
 BCF THIRD_BYTE,7
 CALL Wait50us
 CALL Wait5us
 CALL Wait5us
 RETURN



SendIBUTTONHI:
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait5us

; CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
 MOVWF TRISIBUTTON

 CALL Wait70us

 RETURN

SendIBUTTONLO:
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait60us

; CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
 MOVWF TRISIBUTTON
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 RETURN

Wait5us:
 NOP
 NOP
 NOP
 NOP
 NOP
 RETURN

Wait1s:
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us




Wait500us:
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 RETURN

Compensated_Wait500us:
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait5us
 ;CALL Wait5us
 ;CALL Wait5us
 ;CALL Wait5us
 RETURN

Wait50us:
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL  Wait5us
 CALL Wait5us
 CALL Wait5us

 NOP
 NOP
 NOP
 NOP
 NOP
 NOP
 NOP
 NOP

 RETURN

Wait70us:
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 NOP
 NOP
 NOP
 NOP

 RETURN

Wait60us:
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us

 RETURN

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;Functions to display team NO and clor on helm;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
TRANSLATE:
;if value <10, convert to c0-3, C4 low
 movlw  0x0A
 subwf  CRAFT_NUMBER, W ;subtract 9 from craft number
 btfsc STATUS, 0 ;will be set if (number - 9) < 0
 goto TEN_PLUS
 bcf CRAFT_NUMBER, TENS_BIT ;ensure lights for 10s place not on
 goto  TRANSLATE_COMPLETE

;if value >10, convert to <10, C4 high
TEN_PLUS:
 movlw 0x0A
 subwf CRAFT_NUMBER, F ;subtract 9 from craft number (10s place represented by other lights)
 bsf CRAFT_NUMBER, TENS_BIT

TRANSLATE_COMPLETE:
 movf CRAFT_NUMBER,W
 movwf ASSEMBLED_BYTE ;start forming the assdembled byte
 return


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

ADD_TEAM:
 banksel CRAFT_TEAM
 btfss CRAFT_TEAM,0 ;check team bit - wherever it is in main code
 goto BLUE_TEAM
 goto RED_TEAM

;set team bits
BLUE_TEAM:
 bsf ASSEMBLED_BYTE, BLUE_TEAM_BIT
 bcf ASSEMBLED_BYTE, RED_TEAM_BIT
 return

RED_TEAM:
 bsf ASSEMBLED_BYTE, RED_TEAM_BIT
 bcf ASSEMBLED_BYTE, BLUE_TEAM_BIT
 return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

SHIFT_BYTE:
 banksel ASSEMBLED_BYTE

 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG

 rrf ASSEMBLED_BYTE,F
 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG

 rrf ASSEMBLED_BYTE,F
 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG

 rrf ASSEMBLED_BYTE,F
 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG

 rrf ASSEMBLED_BYTE,F
 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG

 rrf ASSEMBLED_BYTE,F
 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG

 rrf ASSEMBLED_BYTE,F
 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG

 rrf ASSEMBLED_BYTE,F
 call SET_SHIFT_DATA
 call PULSE_SHIFT_REG


 return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

SET_SHIFT_DATA:
 btfss ASSEMBLED_BYTE,0
 goto SET_LOW
 goto SET_HIGH

SET_LOW:
 bcf SHIFT_PORT,SHIFT_DATA_BIT ;set data bit to bit 0 of assembled byte
 goto SET_COMPLETE

SET_HIGH:
 bsf SHIFT_PORT,SHIFT_DATA_BIT

SET_COMPLETE

 return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

PULSE_SHIFT_REG:
 banksel SHIFT_PORT
 bsf SHIFT_PORT,SHIFT_CLOCK_BIT
 nop
 nop
 bcf SHIFT_PORT,SHIFT_CLOCK_BIT
 return




;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;Game Control Function;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

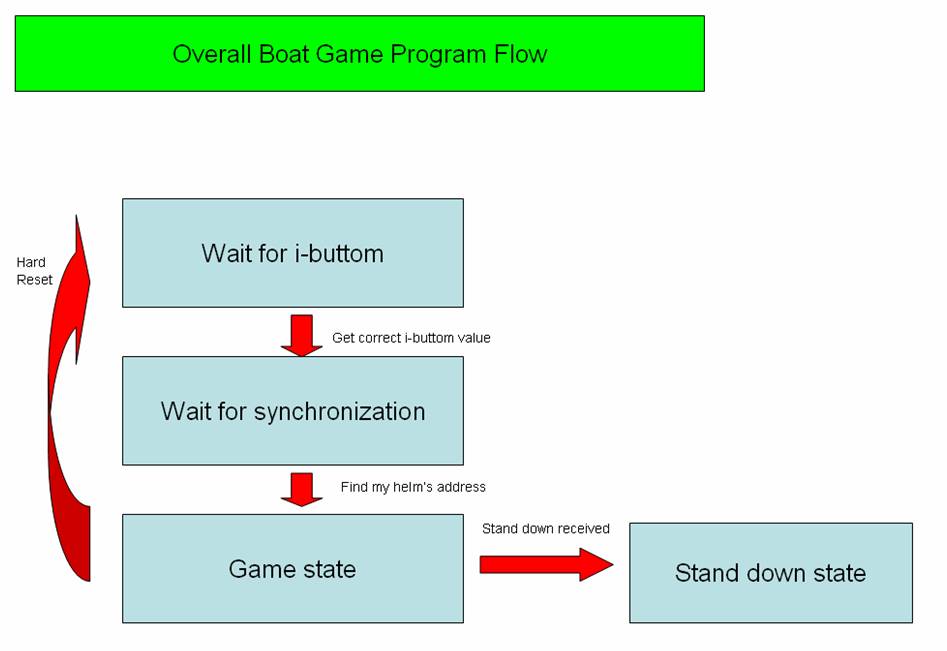

Game_Control:
 banksel RCREG ;bank 0
 movf GameState, w
 sublw WaitForIbuttom
 btfsc STATUS, Z
 goto Wait_For_Ibuttom_State ;wait for i-buttom state

 movf GameState, w
 sublw WaitForSync
 btfsc STATUS, Z
 goto Wait_For_Sync_State ;have read i-buttom, wait for syncronize state

 movf GameState, w
 sublw WaitForGame
 btfsc STATUS, Z
 goto Wait_For_Game_State ;Wait_For_Game game state

 movf GameState, w
 sublw Game
 btfsc STATUS, Z
 goto Game_State ;normal in Game down game state

 movf GameState, w
 sublw HardReset
 btfsc STATUS, Z
 goto Hard_Reset_State ;Hard_Reset game state

 movf GameState, w
 sublw BoatStandDown
 btfsc STATUS, Z
 goto Boat_Stand_Down_State ;Boat_Stand_Down game state

 movf GameState, w
 sublw EndGame
 btfsc STATUS, Z
 goto End_Game_State ;EndGame game state
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;Game State Functions;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;the wait for ibuttom state
Wait_For_Ibuttom_State:
 banksel RCREG ;bank 0
retest_ibuttom:
 call LoadIButtonBytes
 ;store the first i-buttom reading also in another place for later comparison
 movf SECOND_BYTE, w
 movwf SECOND_BYTE_CHECK
 movf THIRD_BYTE, w
 movwf THIRD_BYTE_CHECK

 ;ibuttom reading for second time
 call LoadIButtonBytes
 ;check if reading is the same with last time
 movf SECOND_BYTE, w
 subwf SECOND_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom
 movf THIRD_BYTE, w
 subwf THIRD_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom

 ;ibuttom reading for third time
 call LoadIButtonBytes
 ;check if reading is the same with last time
 movf SECOND_BYTE, w
 subwf SECOND_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom
 movf THIRD_BYTE, w
 subwf THIRD_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom

 movf THIRD_BYTE, w
 sublw 0x00
 btfsc STATUS, Z
goto retest_ibuttom

 movf THIRD_BYTE, w
 sublw 0xFF
 btfsc STATUS, Z
goto retest_ibuttom

 movlw WaitForSync
 movwf GameState
return

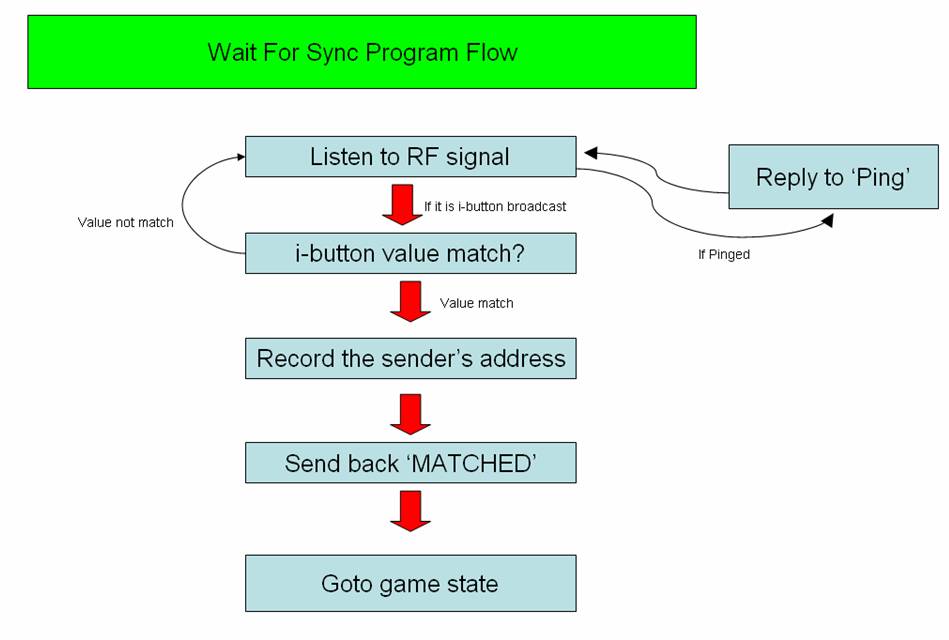

;once read i-buttom, broadcast i-buttom, until sense a match from my boat
Wait_For_Sync_State:
 banksel RCREG ;bank 0

 ;broadcast i-buttom signal
 movlw 0xff
 movwf Destination_Address_First
 movlw 0xff
 movwf Destination_Address_Second
 movlw IBUTTON
 movwf RFdata0_to_send
 movf THIRD_BYTE, w
 movwf RFdata1_to_send
 movf SECOND_BYTE, w
 movwf RFdata2_to_send
 call No_Wait_Transmit_Function

 bcf PIR1, TMR1IF ;clear timer 1 flag
back4:
 btfsc PIR1, TMR1IF ;check timer, ensure that this transmit is more than 200ms later than last one
 return

 call Get_Data_Function ;get the rf data
 movf RFdata0_received, w
 sublw WATERCRAFT
 btfsc STATUS, Z
goto respond_boat

 movf RFdata0_received, w
 sublw ADMIRAL  ;check if the Header Data is for Admiral
 btfsc STATUS, Z
goto respond_admiral
goto back4


respond_boat:
 movf RFdata1_received, w
 sublw MATCHED_1
 btfss STATUS, Z
goto back4

 movf RFdata2_received, w
 sublw MATCHED_2
 btfss STATUS, Z
goto back4

 ;if reach here, mean my helm has gotten a MATCH reply from my boat, record its address
 movf Source_Address_Second, w
 movwf MyBoatAddress

 ;display team number and color on the helm
 movf MyBoatAddress, w
 movwf CRAFT_NUMBER
 movf SECOND_BYTE, w
 movwf CRAFT_TEAM
 call  TRANSLATE ;takes craft number in binary (lower nibble) translates to 5 bits for BCD
 call ADD_TEAM ;adds team affiliation to assembled byte
 call SHIFT_BYTE ;shift byte out on C0-1

 ;go to in-game state
 movlw WaitForGame;change back to WaitForGame after testing!!!!!
 movwf GameState
goto back4

;;;;end of function

respond_admiral:
 movf RFdata2_received, w
 sublw ADMIRAL_PING ;check if the Header Data is for ADMIRAL_PING
 btfsc STATUS, Z
 call case_ADMIRAL_PING
 call Erase_Data_Function
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
Wait_For_Game_State:

 banksel RCREG ;bank 0

;check is there is Ping, StartGame command or i-buttom signal from my boat,
 call check_signal
 call StopBoat
return

;check is there is Ping, StartGame command or i-buttom signal from my boat,
;i-buttom has not been done yet
check_signal:
 call Get_Data_Function
 movf RFdata0_received, w
 sublw ADMIRAL  ;check if the signal is from admiral
 btfsc STATUS, Z
 goto ping_or_startgame ;if from admiral, it could be ping or start game command
return

ping_or_startgame:
 movf RFdata2_received, w
 sublw START_GAME  ;check if the signal is for game start
 btfsc STATUS, Z
 goto case_start_game ;if is for game start, then cange game stat to 'game'

 movf RFdata2_received, w
 sublw ADMIRAL_PING  ;check if the signal is for ping
 btfsc STATUS, Z
 goto case_ADMIRAL_PING ;if is for ping, then respond
return

case_start_game:
;first erase signal to avoid multiple acknowledgements
 call Erase_Data_Function
 ;acknowledge to the boat
 movlw ADMIRAL_ADDRESS_MSB
 movwf Destination_Address_First
 movlw ADMIRAL_ADDRESS_LSB
 movwf Destination_Address_Second
 movlw ACK
 movwf RFdata0_to_send
 movlw 0x00
 movwf RFdata1_to_send
 movlw START_GAME
 movwf RFdata2_to_send
 call Transmit_Function
 movlw Game
 movwf GameState
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;general in-game state
Game_State:
 banksel RCREG ;bank 0
 call Get_Data_Function

 movf RFdata0_received, w
 sublw WATERCRAFT  ;check if the Header Data is from boat
 ;if (is WATERCRAFT), call WaterCraft_Respond_Function function, else keep checking if it's other situation
 btfsc STATUS, Z
 call WaterCraft_Respond_Function

 movf RFdata0_received, w
 sublw ADMIRAL  ;check if the Header Data is for Admiral
 ;if (is Admiral), call Admiral function, else keep checking if it's other situation
 btfsc STATUS, Z
 call Admiral_Function

 call Boat_Control
return
;end of function Game_State

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

End_Game_State:
;almost everything is the same with in-game state, except Boat_Control will check the game state and decide wether to activate special functions
 call Game_State
return

;2 possible commands the helm is likely to receive and respond to: from watercraft and admiral
WaterCraft_Respond_Function:
 banksel RCREG ;bank 0

 movf RFdata2_received, w
 sublw STAND_DOWN_RECEIVED_2
 btfsc STATUS, Z
 goto case_BoatStandDown
return

case_BoatStandDown:
 ;clear the received RF data, so later I can check if there is a new transmission from my boat
 call Erase_Data_Function
 ;acknowledge to the boat
 movlw CRAFT_MSB
 movwf Destination_Address_First
 movf MyBoatAddress, w
 movwf Destination_Address_Second
 movlw ACK
 movwf RFdata0_to_send
 movlw STAND_DOWN_RECEIVED_1
 movwf RFdata1_to_send
 movlw STAND_DOWN_RECEIVED_2
 movwf RFdata2_to_send
 call Transmit_Function

;start timing for 10 sec, LEDs start flashing
 call Turn_On_10s_Timer

 movlw BoatStandDown
 movwf GameState
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Admiral_Function:
 banksel RCREG ;bank 0

 movf RFdata2_received, w
 sublw BLUE_GOAL
 btfsc STATUS, Z
 goto case_BLUE_GOAL

 movf RFdata2_received, w
 sublw RED_GOAL
 btfsc STATUS, Z
 goto case_RED_GOAL

 movf RFdata2_received, w
 sublw HARD_RESET
 btfsc STATUS, Z
 goto case_HARD_RESET

 movf RFdata2_received, w
 sublw ADMIRAL_PING ;check if the Header Data is for ADMIRAL_PING
 ;if (is ADMIRAL_PING), change game state
 btfsc STATUS, Z
 goto case_ADMIRAL_PING

 movf RFdata2_received, w
 sublw END_GAME
 btfsc STATUS, Z
 goto case_END_GAME
return

case_BLUE_GOAL:
;light the blue LED
 banksel PORTC ;bank 0
 bsf Goal_Color, 7
 bcf Goal_Color, 6
 bsf PORTC, 1
 bcf PORTC, 2
return

case_RED_GOAL
;light the red LED
 banksel PORTC ;bank 0
 bsf Goal_Color, 6
 bcf Goal_Color, 7
 bsf PORTC, 2
 bcf PORTC, 1
return

case_HARD_RESET:
 movlw HardReset
 movwf GameState
return

case_ADMIRAL_PING:
 call Erase_Data_Function
 call Ping_Respond_Function
return

case_END_GAME
 call Erase_Data_Function
 ;acknowledge to the admiral
 movlw ADMIRAL_ADDRESS_MSB
 movwf Destination_Address_First
 movlw ADMIRAL_ADDRESS_LSB
 movwf Destination_Address_Second
 movlw ACK
 movwf RFdata0_to_send
 movlw 0x00
 movwf RFdata1_to_send
 movlw END_GAME
 movwf RFdata2_to_send
 call Transmit_Function
 movlw EndGame
 movwf GameState
return

;end of Admiral_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Boat_Control:
;get the command from control pannel
;send out navigation command to boat in 5Hz rate
;decide wether to activate special function based on wether in Game state or End-Game state

 movf GameState, w
 sublw Game
 btfsc STATUS, Z
 goto special_fun_on ;normal in Game down game state

 movf GameState, w
 sublw EndGame
 btfsc STATUS, Z
 goto special_fun_off ;EndGame game state

 call StopBoat ;else stop the boat
return

special_fun_on:
 call Get_Control_Sig
 movlw CRAFT_MSB
 movwf Destination_Address_First
 movf MyBoatAddress,w
 movwf Destination_Address_Second
 movlw NAVIGATION
 movwf RFdata0_to_send
 movf Navi, w
 movwf RFdata1_to_send
 movf Speci, w
 movwf RFdata2_to_send
 call Transmit_Function
return

special_fun_off:
 call Get_Control_Sig
 movlw CRAFT_MSB
 movwf Destination_Address_First
 movf MyBoatAddress,w
 movwf Destination_Address_Second
 movlw NAVIGATION
 movwf RFdata0_to_send
 movf Navi, w
 movwf RFdata1_to_send
 movlw 0x00
 movwf RFdata2_to_send
 call Transmit_Function
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;the function to get signal from the control pannel through SPI
Get_Control_Sig:


 movlw 0x00

 BANKSEL SSPBUF
 MOVWF SSPBUF ;Send Data

 BANKSEL SSPSTAT
 BTFSS SSPSTAT,BF ;Wait for receive complete
 GOTO $-1

 BANKSEL SSPBUF ;Get received data
 MOVF SSPBUF,w
 movwf message_received

 btfsc PORTC, 0
 goto Get_Navi
  goto Get_Speci


Get_Navi:
 BANKSEL Navi
 movf message_received, w
 MOVWF Navi
RETURN


Get_Speci
 BANKSEL Speci
 movf message_received, w
 MOVWF Speci

RETURN


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

GameState_equ_ibuttom:
 movlw WaitForIbuttom
 movwf GameState
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Boat_Stand_Down_State:
 banksel RCREG
 call Get_Data_Function
;check if there is new data from my boat
 movf RFdata0_received, w
 sublw WATERCRAFT  ;check if the Header Data is from boat
 btfss STATUS, Z
 goto Check_Timer

 movf RFdata2_received, w
 sublw STAND_DOWN_RECEIVED_2
 btfss STATUS, Z
 goto Check_Timer

 ;if receive another STAND_DOWN_RECEIVED from my boat. clear the received RF data, so later I can check if there is a new transmission from my boat
 call Erase_Data_Function
 ;if receive another STAND_DOWN_RECEIVED from my boat, acknowledge to the boat again
 movlw CRAFT_MSB
 movwf Destination_Address_First
 movf MyBoatAddress, w
 movwf Destination_Address_Second
 movlw ACK
 movwf RFdata0_to_send
 movlw STAND_DOWN_RECEIVED_1
 movwf RFdata1_to_send
 movlw STAND_DOWN_RECEIVED_2
 movwf RFdata2_to_send
 call Transmit_Function
return

Check_Timer:
;transmit boat stop
 ;call StopBoat
 banksel RCREG ;bank 0
;check 10 sec time up flag
 movf ten_sec_TimeUp, w
 sublw 0xff
 btfsc STATUS, Z
 goto Time_Up
return

Time_Up:
 call Turn_Off_10s_Timer

;LEDs stop flashing, display former goal color
 btfsc Goal_Color, 7
 call case_BLUE_GOAL
 btfsc Goal_Color, 6
 call case_RED_GOAL
;change game state
 movlw Game
 movwf GameState
return


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;start to count for 10 seconds, when time up, ten_sec_TimeUp will change to 0xff
Turn_On_10s_Timer:
;start 10 sec timer
 banksel OPTION_REG ;bank 1
 movlw b'00000111'
 movwf OPTION_REG
 banksel RCREG ;bank 0
 movlw 0x00
 movwf ten_sec_TimeUp
 movlw 0x00
 movwf ten_sec_timer_CNT1
 movlw 0x00
 movwf ten_sec_timer_CNT2
;enable timer0 interrupt
 bsf INTCON, T0IE
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;stop timer, reset time up flag and counters
Turn_Off_10s_Timer:
;stop 10 sec timer
 banksel OPTION_REG ;bank 1
;turn off timer 0
 movlw b'11111111'
 movwf OPTION_REG
 banksel RCREG ;bank 0
;clear time up flag
 movlw 0x00
 movwf ten_sec_TimeUp
;claer counters
 movlw 0x00
 movwf ten_sec_timer_CNT1
 movlw 0x00
 movwf ten_sec_timer_CNT2
;disable timer0 interrupt
 bcf INTCON, T0IE
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Hard_Reset_State:
 banksel RCREG
 call StopBoat ;stop all actuators
 movlw WaitForIbuttom ;game state go back to waiting for i-buttom
 movwf GameState
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Ping_Respond_Function:
 banksel RCREG ;bank 0
 movlw ADMIRAL_ADDRESS_MSB
 movwf Destination_Address_First
 movlw ADMIRAL_ADDRESS_LSB
 movwf Destination_Address_Second
 movlw PING_RESPONSE
 movwf RFdata0_to_send

 movf GameState, w
 sublw WaitForIbuttom
 btfsc STATUS, Z
 goto no_ibuttom ;normal game state

 movf GameState, w
 sublw WaitForSync
 btfsc STATUS, Z
 goto Unpaired ;normal game state

 movlw 0x04
 movwf RFdata1_to_send
 movf MyBoatAddress, w
 movwf RFdata2_to_send
 call No_Wait_Transmit_Function
return

no_ibuttom:
 movlw 0x01
 movwf RFdata1_to_send
 movlw 0x00
 movwf RFdata2_to_send
 call No_Wait_Transmit_Function
return

Unpaired:
 movlw 0x02
 movwf RFdata1_to_send
 movlw 0x00
 movwf RFdata2_to_send
 call No_Wait_Transmit_Function
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

StopBoat:
;send out No_ACTION to boat in 5Hz rate
 banksel RCREG ;bank 0
 movlw CRAFT_MSB
 movwf Destination_Address_First
 movf MyBoatAddress,w
 movwf Destination_Address_Second
 movlw NAVIGATION
 movwf RFdata0_to_send
 movlw 0x88
 movwf RFdata1_to_send
 movlw 0x00
 movwf RFdata2_to_send
 call Transmit_Function
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Main:

;delay to wait for power up
LONG_DELAY:
 movlw 0xFF ; ~16ms
 movwf COUNTER
LOOP3:
 movlw 0xFF
 nop
 nop
 nop
 movwf COUNTER2
LOOP2:
 decfsz COUNTER2,f
 goto LOOP2


 decfsz COUNTER,f
 goto LOOP3

;Input capture Init, I/O pins Init, SCI Init
call Init

;initial game state
movlw WaitForIbuttom
movwf GameState
movlw 0x09
movwf MyBoatAddress

movlw 0xab
movwf SECOND_BYTE
movlw 0xab
movwf THIRD_BYTE

movlw 0x00
movwf RFdata0_received
movlw 0x00
movwf RFdata1_received
movlw 0x00
movwf RFdata2_received

movlw 0x00
movwf RFdata0_to_send
movlw 0x00
movwf RFdata1_to_send
movlw 0x00
movwf RFdata2_to_send



;call case_BoatStandDown

Loop:

call Game_Control



goto Loop



END

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Helm Control Inputs Pseudocode

Initialize

A0 as output for byte type select (movement or special)

B4,6 and C6,7 for SSP

C0-2 as analog inputs

C3-5 as digital inputs

Main

Delay for power ramp up

Configure I/)

Initialize SSP

Configure AD

Set Tad speed, set left justified, set Vdd as reference, enable

While(1)

Load data into SSP register

Service AD conversions

If all AD conversions complete

Assemble new special byte

Assemble new movement byte

Load new data

If SSP data has been read

Switch byte type in register

Service AD conversions

If conversion complete

Start next conversion

If all 3 conversions done

Set conversions done flag

Assemble special byte

Clear special byte register

Add limit switch values for turret

If fire button depressed

Load AD value from pump into special byte

Assemble movement byte

Clear movement byte register

Convert speed AD value into movement command nibble

Add to byte

Convert direction AD value into movement command nibble

Add to byte

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Helm Control Inputs Code Listing

; Nathan Parkhill, Mark Malhotra, Shaoqing Xiang

;218c project code to take in all helm inputs and assemble 2 bytes according to the comm spec

list P=PIC16F690

#include "P16F690.inc"

__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC& _MCLRE_OFF)

org 0

goto MAIN

org 5

TABLE:

MAIN:

;Bit defines

PORTA_DIR equ b'00000000' ;a0 for spi

PORTB_DIR equ b'01010000' ;b4 and b6 for spi

PORTC_DIR equ b'01111111' ;c0-5 for inputs, c6 and c7 for spi

ANSEL_LOW equ b'01110000' ;analog on C 0-2

ANSEL_HI equ 0x00 ;no analog

ADCON1_VALUES equ b'01010000' ;sets 16Tosc <10mhz oscillator

SPECIAL_MASK equ b'00110000' ; turret special inputs on C4,5

MSNIBBLE_MASK equ b'00001111'

LSNIBBLE_MASK equ b'11110000'

FIRE_BIT equ 3

AD_CHANNEL_MASK equ b'11000011'

SPEED_AD_CHAN equ b'00010100' ;an5

DIR_AD_CHAN equ b'00010000' ;an4

PUMP_AD_CHAN equ b'00011000' ;an6

MOVEMENT_BYTE equ 0x30

SPECIAL_BYTE equ 0x31

PUMP_ADCONV equ 0x32

SPEED_ADCONV equ 0x33

DIR_ADCONV equ 0x34

BYTE_TO_CONVERT equ 0x35

CONVERTED_BYTE equ 0x36

LAST_CONVERSION equ 0x37

FLAG_REGISTER equ 0x38

AD_DONE_FLAG equ b'00000001'

SSP_ID_PORT equ PORTA

SSP_ID_BIT equ 0

COUNTER equ 0x39

COUNTER2 equ 0x3A

TEMP equ 0x40

BIN1_UPPER_BOUND equ b'01100100'

BIN2_UPPER_BOUND equ b'01101100'

BIN3_UPPER_BOUND equ b'01110110'

BIN4_UPPER_BOUND equ b'10001100'

BIN5_UPPER_BOUND equ b'10010110'

BIN6_UPPER_BOUND equ b'10011111'

FIRST_BIN_OUTPUT equ b'00000000'

SECOND_BIN_OUTPUT equ b'00000011'

THIRD_BIN_OUTPUT equ b'00000101'

FOURTH_BIN_OUTPUT equ b'00001000'

FIFTH_BIN_OUTPUT equ b'00001011'

SIXTH_BIN_OUTPUT equ b'00001101'

SEVENTH_BIN_OUTPUT equ b'00001111'

;wait for power ramp-up

call LONG_DELAY

call LONG_DELAY

call LONG_DELAY

call LONG_DELAY

call LONG_DELAY

;configure I/0

banksel ANSEL

movlw ANSEL_LOW ;set analog select on all bits

movwf ANSEL

movlw ANSEL_HI

movwf ANSELH

banksel TRISA

movlw PORTA_DIR ;set port A directions

movwf TRISA

movlw PORTB_DIR ;set port B directions

movwf TRISB

movlw PORTC_DIR ;Set port C directions

movwf TRISC

banksel PORTA

;init SSP

call InitSSP

;configure AD

banksel ADCON1

movlw ADCON1_VALUES ;sets Tad speed

movwf ADCON1

banksel ADCON0

bcf ADCON0,7 ;set left justified

bcf ADCON0,6 ;set vdd as ref

bsf ADCON0,0 ;enable AD

movlw 0x06

movwf LAST_CONVERSION ;start at last conversion

;load dummy movement byte for first read

BANKSEL SSPBUF

MOVLW b'00110111'

MOVWF SSPBUF

BANKSEL SSP_ID_PORT

BSF SSP_ID_PORT,SSP_ID_BIT

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;main code

TOP:

; banksel MOVEMENT_BYTE

; movlw 0xAA

; movwf MOVEMENT_BYTE

; movlw 0x10

; movwf SPECIAL_BYTE

; MOVWF SSPBUF

call LOAD_NEW_DATA

call SERVICE_AD

BANKSEL FLAG_REGISTER

btfss FLAG_REGISTER, AD_DONE_FLAG ;if AD done flag

goto CONVERSION_IN_PROGRESS

call ASSEMBLE_SPECIAL

call ASSEMBLE_MOVEMENT

BANKSEL PORTA

BCF PORTA,1

;put movement in buffer

bcf FLAG_REGISTER, AD_DONE_FLAG ;clear AD done flag

bsf PORTC,7

CONVERSION_IN_PROGRESS:

goto TOP

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

InitSSP:

BANKSEL SSPSTAT

CLRF SSPSTAT ;SMP = 0, CKE = 0

BANKSEL SSPCON

BSF SSPCON,SSPEN

BSF SSPCON,CKP

BSF SSPCON,SSPM2

BSF SSPCON,SSPM0

BANKSEL SSPBUF

MOVF SSPBUF,W

MOVWF SSPBUF

RETURN

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;Updates unread data in the ssp buffer

LOAD_NEW_DATA:

; BANKSEL SSPSTAT

; BTFSC SSPSTAT,BF ;Wait for receive complete

; GOTO DATA_READ

BANKSEL SSPSTAT

BTFSC SSPSTAT,BF ;if ssp read

CALL CHANGE_FLAG ;change flag

BANKSEL SSP_ID_PORT

BTFSC SSP_ID_PORT,SSP_ID_BIT

GOTO LoadMovement

GOTO LoadSpecial

LoadMovement:

BANKSEL SSPBUF

MOVF MOVEMENT_BYTE,W

MOVWF SSPBUF

BSF SSP_ID_PORT,SSP_ID_BIT

RETURN

LoadSpecial:

BANKSEL SSPBUF

MOVF SPECIAL_BYTE,W

MOVWF SSPBUF

BCF SSP_ID_PORT,SSP_ID_BIT

RETURN

CHANGE_FLAG:

BANKSEL PORTA ;set A1

BSF PORTA,1

BANKSEL SSP_ID_PORT

BTFSC SSP_ID_PORT,SSP_ID_BIT ;check A0

GOTO CLEAR_FLAG ;if set, clear

BSF SSP_ID_PORT,SSP_ID_BIT ;if clear,set

RETURN

CLEAR_FLAG:

BCF SSP_ID_PORT,SSP_ID_BIT

RETURN

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

SERVICE_AD:

btfsc ADCON0,GO ;if conversion complete

goto NOT_COMPLETE

movf LAST_CONVERSION,W

xorlw 0x06

btfsc STATUS,Z

goto START_SPEED_CONV

movf LAST_CONVERSION,W

xorlw 0x04

btfsc STATUS,Z

goto START_DIR_CONV

movf LAST_CONVERSION,W

xorlw 0x05

btfsc STATUS,Z

goto START_PUMP_CONV

goto NOT_COMPLETE

START_SPEED_CONV:

banksel ADRESH

movf ADRESH,W ;move top byte of AD

movwf PUMP_ADCONV ;to pump because that was last conversion (6)

movf ADCON0,W

andlw AD_CHANNEL_MASK ; clear ad channel bits

iorlw SPEED_AD_CHAN ;set AD channel bits

movwf ADCON0

call ACQ_DELAY

bsf ADCON0,GO ;start conversion

movlw 0x04 ;update which conversion in progress

movwf LAST_CONVERSION

bsf FLAG_REGISTER, AD_DONE_FLAG;all 3 complete set AD done flag

goto NEW_AD_STARTED

START_DIR_CONV:

banksel ADRESH

movf ADRESH,W ;move top byte of AD

movwf SPEED_ADCONV;to pump because that was last conversion (6)

movf ADCON0,W

andlw AD_CHANNEL_MASK ; clear ad channel bits

iorlw DIR_AD_CHAN ;set AD channel bits

movwf ADCON0

call ACQ_DELAY

bsf ADCON0,GO ;start conversion

movlw 0x05 ;update which conversion in progress

movwf LAST_CONVERSION

goto NEW_AD_STARTED

START_PUMP_CONV:

banksel ADRESH

movf ADRESH,W ;move top byte of AD

movwf DIR_ADCONV;to pump because that was last conversion (6)

movf ADCON0,W

andlw AD_CHANNEL_MASK ; clear ad channel bits

iorlw PUMP_AD_CHAN ;set AD channel bits

movwf ADCON0

call ACQ_DELAY

bsf ADCON0,GO ;start conversion

movlw 0x06 ;update which conversion in progress

movwf LAST_CONVERSION

goto NEW_AD_STARTED

NOT_COMPLETE:

NEW_AD_STARTED:

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

LONG_DELAY:

movlw 0xFF ; ~16ms

movwf COUNTER

LOOP3:

movlw 0xFF

movwf COUNTER2

LOOP2:

decfsz COUNTER2,f

goto LOOP2

decfsz COUNTER,f

goto LOOP3

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

ACQ_DELAY:

movlw 0x60 ;96 loops ~24uS or maybe 48

movwf COUNTER

LOOP:

decfsz COUNTER,f

goto LOOP

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

ASSEMBLE_SPECIAL:

banksel SPECIAL_BYTE

clrf SPECIAL_BYTE

movf PORTC,W ;read switch value

andlw SPECIAL_MASK ;Pull values for special bits

iorwf SPECIAL_BYTE,F ;add switch values to special byte

btfss PORTC,FIRE_BIT ;only add pump values if fire button depressed

goto NOT_FIRING

swapf PUMP_ADCONV,W ;import 8 bit pump AD with swapped nibbles to put the nibble we want in the lower nibble

andlw MSNIBBLE_MASK ; kill MS 4 bits (leaves just the coarsest 4 bits from conversion)

iorwf SPECIAL_BYTE,F ; add to special byte

NOT_FIRING:

bsf SPECIAL_BYTE,7

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

ASSEMBLE_MOVEMENT:

banksel MOVEMENT_BYTE

clrf MOVEMENT_BYTE

comf SPEED_ADCONV,W

movwf BYTE_TO_CONVERT ;prepare speed for conversion

call CONVERT_TO_MVMT ;convert speed

movf CONVERTED_BYTE,W

movwf MOVEMENT_BYTE ;move converted value into movement byte

movf DIR_ADCONV,W

movwf BYTE_TO_CONVERT ;prepare direction for conversion

call CONVERT_TO_MVMT ;convert direction

swapf CONVERTED_BYTE,W ;swap nibbles to move direction to ms nibble

iorwf MOVEMENT_BYTE,F ;add to movement byte (CONVERT_TO_MVMT returns 0000 in upper nibble)

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

CONVERT_TO_MVMT: ;splits the movement into 7 possible bins based on AD level

FIRST_BIN_CHECK:

movlw BIN1_UPPER_BOUND

subwf BYTE_TO_CONVERT, W;subtract bin upper limit from AD value

btfsc STATUS, C ;will be set if (number - bin upper) < 0

goto SECOND_BIN_CHECK ;number was not in this bin

movlw FIRST_BIN_OUTPUT

movwf CONVERTED_BYTE

goto VALUE_DETERMINED

SECOND_BIN_CHECK:

movlw BIN2_UPPER_BOUND

subwf BYTE_TO_CONVERT, W;subtract bin upper limit from AD value

btfsc STATUS, C ;will be set if (number - bin upper) < 0

goto THIRD_BIN_CHECK

movlw SECOND_BIN_OUTPUT

movwf CONVERTED_BYTE

goto VALUE_DETERMINED

THIRD_BIN_CHECK:

movlw BIN3_UPPER_BOUND

subwf BYTE_TO_CONVERT, W;subtract bin upper limit from AD value

btfsc STATUS, C ;will be set if (number - bin upper) < 0

goto FOURTH_BIN_CHECK

movlw THIRD_BIN_OUTPUT

movwf CONVERTED_BYTE

goto VALUE_DETERMINED

FOURTH_BIN_CHECK:

movlw BIN4_UPPER_BOUND

subwf BYTE_TO_CONVERT, W;subtract bin upper limit from AD value

btfsc STATUS, C ;will be set if (number - bin upper) < 0

goto FIFTH_BIN_CHECK

movlw FOURTH_BIN_OUTPUT

movwf CONVERTED_BYTE

goto VALUE_DETERMINED

FIFTH_BIN_CHECK:

movlw BIN5_UPPER_BOUND

subwf BYTE_TO_CONVERT, W;subtract bin upper limit from AD value

btfsc STATUS, C ;will be set if (number - bin upper) < 0

goto SIXTH_BIN_CHECK

movlw FIFTH_BIN_OUTPUT

movwf CONVERTED_BYTE

goto VALUE_DETERMINED

SIXTH_BIN_CHECK:

movlw BIN6_UPPER_BOUND

subwf BYTE_TO_CONVERT, ;subtract bin upper limit from AD value

btfsc STATUS, C ;will be set if (number - bin upper) < 0

goto SEVENTH_BIN_CHECK

movlw SIXTH_BIN_OUTPUT

movwf CONVERTED_BYTE

goto VALUE_DETERMINED

SEVENTH_BIN_CHECK:

movlw SEVENTH_BIN_OUTPUT

movwf CONVERTED_BYTE

VALUE_DETERMINED:

return

end

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Helm Display Pseudocode

Initialize

C0,1 as data and clock for shift register (digital outputs)

Main Code

Translate craft number

Add team affiliation to byte

Shift byte out to register

Translate craft number

If craft number <10

Set lower nibble with craft number

Set tens bit low

If craft number >10

Subtract 10 from craft number

Set lower nibble with craft number

Set tens bit high

Add team affiliation

If team is red

Set red team bit, clear blue team bit

If team is blue

Set blue team bit, clear red team bit

Shift byte out

Select assembled byte

Until Byte is done

Set data line with bit 0 of assembled byte

Pulse clock line

Rotate bits in assembled byte so next bit is in position 0

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Helm Display Code Listing

; Nathan Parkhill, Mark Malhotra, Shaoqing Xiang

;218c project code to take in 4 bit value and a team value and output to 2 digits of a 7 segment led display via a shift register and bcd

list P=PIC16F690

#include "P16F690.inc"

__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC& _MCLRE_OFF) ;only disabled masterclear b/c needed as input

org 0

goto MAIN

org 5

TABLE:

MAIN:

;Bit defines

PORTA_DIR equ b'00001111' ;inputs on a to take in number to convert- comes from ibutton translation in actual program

PORTC_DIR equ b'00000100' ;c3 input for go switch- also testing. need C0-1 as outputs for shift register

MSB_MASK equ b'00001111'

SHIFT_PORT equ PORTC

SHIFT_DATA_BIT equ 0

SHIFT_CLOCK_BIT equ 1

CRAFT_NUMBER equ 0x30

CRAFT_TEAM equ 0x31 ; bit 0 high for red, low for blue - can be taken from somewhere else later

TRANSLATED_BYTE equ 0x32

TENS_BIT equ 4 ;bit in assembled bytethat controls the tens place on the display

RED_TEAM_BIT equ 5 ;bit in assembled byte to indicate blue team

BLUE_TEAM_BIT equ 6 ;bit in assembled byte to indicate red team

ASSEMBLED_BYTE equ 0x32 ;byte to shift out

;configure I/0

banksel ANSEL

movlw 0x00 ;clear analog select on all bits (only need C0-1)

movwf ANSEL

movwf ANSELH

banksel TRISA

movlw PORTA_DIR ;set port B directions

iorwf TRISA,F

movlw PORTC_DIR ;Set port C directions

movwf TRISC

banksel PORTA

movlw 0x00

movwf PORTC ;set all outputs to 0

;set blue team for testing

bcf CRAFT_TEAM,0

;main code

TOP:

;take in value from switches

clrf ASSEMBLED_BYTE

movf PORTA,W ;read switch value

andlw MSB_MASK ;lose top 4 bits

movwf CRAFT_NUMBER

call TRANSLATE ;takes craft number in binary (lower nibble) translates to 5 bits for BCD

call ADD_TEAM ;adds team affiliation to assembled byte

call SHIFT_BYTE ;shift byte out on C0-1

btfss PORTC,2 ;wait for button push

goto $-1

goto TOP

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

TRANSLATE:

;if value <10, convert to c0-3, C4 low

movlw 0x0A

subwf CRAFT_NUMBER, W ;subtract 9 from craft number

btfsc STATUS, 0 ;will be set if (number - 9) < 0

goto TEN_PLUS

bcf CRAFT_NUMBER, TENS_BIT ;ensure lights for 10s place not on

goto TRANSLATE_COMPLETE

;if value >10, convert to <10, C4 high

TEN_PLUS:

movlw 0x0A

subwf CRAFT_NUMBER, F ;subtract 9 from craft number (10s place represented by other lights)

bsf CRAFT_NUMBER, TENS_BIT

TRANSLATE_COMPLETE:

movf CRAFT_NUMBER,W

movwf ASSEMBLED_BYTE ;start forming the assdembled byte

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

ADD_TEAM:

banksel CRAFT_TEAM

btfss CRAFT_TEAM,0 ;check team bit - wherever it is in main code

goto BLUE_TEAM

goto RED_TEAM

;set team bits

BLUE_TEAM:

bsf ASSEMBLED_BYTE, BLUE_TEAM_BIT

bcf ASSEMBLED_BYTE, RED_TEAM_BIT

return

RED_TEAM:

bsf ASSEMBLED_BYTE, RED_TEAM_BIT

bcf ASSEMBLED_BYTE, BLUE_TEAM_BIT

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

SHIFT_BYTE:

banksel ASSEMBLED_BYTE

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

rrf ASSEMBLED_BYTE,F

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

rrf ASSEMBLED_BYTE,F

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

rrf ASSEMBLED_BYTE,F

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

rrf ASSEMBLED_BYTE,F

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

rrf ASSEMBLED_BYTE,F

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

rrf ASSEMBLED_BYTE,F

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

rrf ASSEMBLED_BYTE,F

call SET_SHIFT_DATA

call PULSE_SHIFT_REG

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

SET_SHIFT_DATA:

btfss ASSEMBLED_BYTE,0

goto SET_LOW

goto SET_HIGH

SET_LOW:

bcf SHIFT_PORT,SHIFT_DATA_BIT ;set data bit to bit 0 of assembled byte

goto SET_COMPLETE

SET_HIGH:

bsf SHIFT_PORT,SHIFT_DATA_BIT

SET_COMPLETE

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

PULSE_SHIFT_REG:

banksel SHIFT_PORT

bsf SHIFT_PORT,SHIFT_CLOCK_BIT

nop

nop

bcf SHIFT_PORT,SHIFT_CLOCK_BIT

return

end

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Boat Program Flow

\

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Boat Communication PIC Pseudocode

Variable definition:

bytes_to_ignore equ 0x22   ;to store the address information received

message_received equ 0x23  ;to store the data received

message_to_send equ 0x24  ;to store the data to send

RFdata0_received equ 0x25   ;to store the data received

RFdata1_received equ 0x26   ;to store the data received

RFdata2_received equ 0x27   ;to store the data received

RFdata0_to_send equ 0x28   ;to store the data to_send

RFdata1_to_send equ 0x29   ;to store the data to_send

RFdata2_to_send equ 0x2A   ;to store the data to_send

Source_Address_First equ 0x2B ;the most significant byte to address

Source_Address_Second equ 0x2C ;the least significant byte to address

Destination_Address_First equ 0x2D ;the most significant byte to address

Destination_Address_Second equ 0x2E ;the least significant byte to address

drive_pump equ 0x30;  ;the re-structured data to send to the drive, pump control PIC through SPI

ID_stepper_servo equ 0x31; ;the re-structured data to send to the servo, stepper control PIC through SPI

team_ID equ 0x32; bit 6,7 indicate our boat's ID, the other bits are 0

temp equ 0x33; temporary space to store intermediate data

sum equ 0x34   ;to store the sum value

check_sum equ 0x35    ; to store the check sum value

MyHelmAddress equ 0x36  ;to store the least significant byte of paired helm address

GameState equ 0x37  ;game state

three_sec_timer_CNT equ 0x38

#define three_sec_timer_PER 0x72  ;=114

W_TEMP equ 0x70     ; to store w value for interrupts return

STATUS_TEMP equ 0x71  ; to store STATUS value for interrupts return

ReceiveIndex equ 0x3F ;the index to indicate where I am in the 11 byte frame

#define RX_START 0x40 ;Location of first byte received

;all ram space in between are used

#define RX_END 0x4B ;Location of last byte received

COUNTER equ 0x60

COUNTER2 equ 0x61

i-buttom variables:

#define IBUTTON_PORT  PORTA

#define IBUTTON_PIN    0

#define TRISIBUTTON    TRISA

#define IBUTTON_INPUT  0x01

#define IBUTTON_OUTPUT  0x00

#define IBUTTON_HI   0x01

#define IBUTTON_LO   0x00

FIRST_BYTE  equ    0x66

SECOND_BYTE  equ    0x67

THIRD_BYTE  equ    0x68

TEMP   equ    0x69

SECOND_BYTE_CHECK  equ    0x6A

THIRD_BYTE_CHECK  equ    0x6B

org 0

goto Main

org 4

goto ISR

org 5

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;program starts;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Interrupt service routine:

ISR:

Save current w register value

Save current STATUS register value

Check if the interrupt is caused by SCI or Timer0 overflow

If (caused by SCI), use RF data process service routine

If (caused by Timer0), use 3 sec timer process service routine

RF receive interrupt service routine:

clear the 3 sec time out counter

store the received RF data in the proper place of array in RAM

Load ReceiveIndex to FSR

movwf FSR

Read data from RCREG, store the data in INDF(address is determined by the value of ReceiveIndex)

Test if the data received is the start byte

If yes, ReceiveIndex = RAM place for second RF byte

Else increase ReceiveIndex

If ReceiveIndex = RAM place for last RF byte, ReceiveIndex = RAM place for first RF byte

End of RF receive interrupt service routine

timer0 interrupt service routine, for 3 sec time out:

increase three_sec_timer_CNT

if three_sec_timer_CNT = 114:

clear three_sec_timer_CNT

write navigation stop to RF data

endif

clear TIMER0 flag

End of timer0 interrupt service routine

Restore the value of STATUS register

Restore the value of w register

Return from interrupt

End of INT function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Function to move address and data information into variables:

Get_Data_Function:

Save the most significant byte of the sender’s address in variable Source_Address_First

Save the least significant byte of the sender’s address in variable Source_Address_Second

Save the first byte of the 3 bytes of real data in variable RFdata0_received

Save the second byte of the 3 bytes of real data in variable RFdata1_received

Save the third byte of the 3 bytes of real data in variable RFdata2_received

Return

End of Get_Data_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Function to erase address and data information

once this function is called, all 0s will be returned from Get_data_function, unless there has been another RF transmission received

Erase_Data_Function:

Write all 0’s to the RF data recording array in RAM

Return

End of Erase_Data_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

initialization function

Init:

initilize variables:

set the value of ReceiveIndex to point to where the starting byte of RF frame is stored

initialize timer 1, use internal oscillator by default

set timer 1 prescale to be 1:8

turn on timer 1

set port CCP1 for output compare

initialize timer 2, for output compare

set prescale and postscale of timer2 to be 16, and turn on timer2

set port A, B, C as non-analog pins

set port A, B, C as non-analog pins

set RC6 as output to do slave select

set RC7 for SPI output

RC0 is general output for PIC select

set RB6 as output for SPI clock

set RB4 as input for SPI in

set PA0 as input for i-buttom reading

initiate SCI:

set baud rate to be 9600:

BRGH=0

Use asynchronous communication

BRG16 ;BRG16=1

SPBRG = 64

baud rate = 9615

enable SPI transmission

enable serial port

enable SPI receiving

initiate SPI:

setting timer2:

TMR2 freq = Fosc/64/49

 turn on timer2, prescaler 1:16, post scaler 1:1

SMP = 0, CKE = 0

SSPEN, CKP=1, CLK freq = TMR2 output/2

Clear SPI receive register full falg

select drive-pump control PIC

send out boat stop signal to the PIC controlling the actuators

Clear SPI Receive Register:

interrupts enables:

enable gloable interrupt enable

enable peripheral interrupt enable

enable SCI receive interrupt

portC output all low

return

End of function initialization

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

data transmit function

Transmit_Function:

check timer, ensure that this transmit is more than 200ms later than last one

send start byte, wait for transmission over by calling wait_for_transmssion_over

send LENGTH_MSB, wait for transmission over

send LENGTH_LSB, wait for transmission over

send API_TX, wait for transmission over

send FRAME_ID, wait for transmission over

send Destination_Address_First, wait for transmission over

send Destination_Address_Second, wait for transmission over

send 0x01 for the option byte, wait for transmission over

send RFdata0_to_send, wait for transmission over

send RFdata1_to_send, wait for transmission over

send RFdata1_to_send, wait for transmission over

calculate check sum value

send check sum value, wait for transmission over

clear timer 1 flag

return

end of Transmit_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

the function to wait until the trasmit shift register of PIC is empty

wait_for_transmssion_over:

keep reading TRMT flag in TXSTA, until it is set

return

end of function wait_for_transmssion_over

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;i-buttom functions;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;; ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

see stand-alone iButton reader code for explanations

End of i-buttom functions

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;Game Control Function;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

the master game control function of the boat:

Game_Control:

Check the value of GameState

Case WaitForIbuttom, use Wait_For_Ibuttom_State service

Case WaitForSync, use Wait_For_Sync_State service

Case Normal, use Normal_State service

Case StandDown, use Stand_Down_State service

Case HardReset, use Hard_Reset_State service

Case SoftReset, use Soft_Reset_State service

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;Game State Functions;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

the wait for ibuttom state

Wait_For_Ibuttom_State:

Keep waiting for first ibuttom read in, store the first i-buttom reading also in another place for later comparison

Keep waiting for second ibuttom read in

Keep waiting for third ibuttom read in

If the three times get the same value, and the value is neither 0xff nor 0x00, store ibuttom data, return from this function

Else go back to the start of this function

End of Wait_For_Ibuttom_State

Once read i-buttom, try to match with my helm

Wait_For_Sync_State:

call Get_Data_Function

check the value of RFdata0_received:

if IBUTTOM, goto check_ibuttom

if ADMIRAL, goto respond_admiral

return

check_ibuttom:

check if the received ibuttom signal is the same with the boat’s, if yes, record the sender’s address as MyHelmAddress

send back MATCHED signal to my helm

set GameState to be Normal

turn on timer0 for 3 sec time out, from now on, if the boat doen’t receive any RF signal in 3 seconds, it will stop all actuators:

initialize timer0 to be slowest, clear three_sec_timer_CNT

enable timer0 interrupt

show team affiliation on the boat by calling Determine_team

return

respond_admiral:

check if the signal is a ping request

if yes, call Ping_Respond_Function

call Erase_Data_Function

return

End of Wait_For_Sync_State

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

function to decide which team I'm in based on i-buttom reading

Determine_team:

test SECOND_BYTE to be even or odd number

if odd, goto red

if even, goto blue

return

red:

RC1 output High

RC2 output Low

return

blue:

RC2 output High

RC1 output Low

Return

End of Determine_team

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

General in-game state

Normal_State:

call Get_Data_Function

check if the signal is I-buttom broadcast

if (is I-buttom), call i-buttom function, else keep checking if it's other situation

check if the signal is for navigation command from my helm

if (is navigation), call navigation function, else keep checking if it's other situation

check if the signal is from Admiral

if (is Admiral), call Admiral function, else keep checking if it's other situation

return

3 possible commands the boat is likely to receive and respond to: ibuttom, navigation, and admiral:

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

I_Buttom_Respond:

first check if the i-buttom boadcast is from my helm, if not, discard

if address is not my helm's, just return

if address is my helm's, send MATCH to it again

return

end of function Normal_State

Navigation_Function:

check if the Navigation Data is really from my helm to prevent responding to other guys' possible bad signal

if not from my helm, just jump out of function

 else re-structure the RFdata1 and RFdata2 to get drive_pump byte:

put pump bits in the lower nibble of drive_pump

put drive bits in the upper nibble of drive_pump

put direction bits in the lower nibble of ID_stepper_servo

put special function bits in bit 4, 5 of ID_stepper_servo

send drive_pump and ID_stepper_servo through SPI to the two lower level PICs which control the actuators

call Talk_To_Mark

return

End of Navigation_Function

the function to talk to the two actuator-control PICs

Talk_To_Mark:

Set RC0, slave select drive-pump control PIC

wait for SPI ready to send new data

Wait for last receive complete

Get received data

send data to PIC1 trough SPI

wait for some time

clear RC0, slave select ID_stepper_servo control PIC

wait for SPI ready to send new data

Wait for last receive complete

Get received data

send data to PIC2 trough SPI

wait for some time

return

End of talk to mark

Admiral_Function:

banksel RCREG  ;bank 0

check if the signal received is STAND_DOWN, if yes, goto case_stand_down

check if the signal received is HARD_RESET, if yes, goto case_hard_reset

check if the signal received is ADMIRAL_PING, if yes, goto case_admiral_ping

check if the signal received is HARD_RESET, if yes, goto case_hard_reset

check if the signal received is SOFT_RESET, if yes, goto case_soft_reset

case_stand_down:

change GameState to ‘StandDown’

return

case_hard_reset:

change GameState to ‘HardReset’

return

case_soft_reset:

change GameState to ‘SoftReset’

return

case_admiral_ping:

call Erase_Data_Function

call Ping_Respond_Function

return

end of Admiral_Function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Stand_Down_State:

call StopBoat to stop all actuators

acknowledge to the admiral

send STAND_DOWN_RECEIVED to Admiral

check if helm acknowledges:

if yes, change GameState back to ‘Normal’

else return from function

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Hard_Reset_State:

call StopBoat to stop all actuators

change GameState back to ‘WaitForIbuttom’

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Soft_Reset_State:

call StopBoat to stop all actuators

send back acknowledgement to admiral

change GameState back to ‘Normal’

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Ping_Respond_Function:

Check GameState:

Case WaitForIbuttom, respond accordinglyreturn

Case WaitForSync, respond accordinglyreturn

Other Cases, respond accordinglyreturn

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

StopBoat:

put 0x80 in drive_pump

put 0x08 in ID_stepper_servo

call Talk_To_Mark

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Main function

Main:

Use some loops to delay for 16ms to wait for power up

call Init

initial game state to be ‘WaitForIbuttom’

call StopBoat

Loop:

call Game_Control

goto Loop

END of program

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Boat Communication PIC Code Listing

list P=PIC16F690

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
; Protocol Rev C constants
; note: use of MSB and LSB implies Byte, not Bit in this.
; Rev A, Brian Hachtmann, May 09 2008

 ; Framing
#define START_BYTE 0x7E
#define LENGTH_MSB 0x00
#define LENGTH_LSB 0x08

 ; API identifier
#define API_RX 0x81
#define API_TX 0x01

 ; Frame ID: change this to non-zero if you wish
 ; your xBee to respond with a Tx Status message
#define FRAME_ID 0x00

 ; Addresses
#define ADMIRAL_ADDRESS_MSB 0xBC
#define ADMIRAL_ADDRESS_LSB 0xFF

#define HELM_MSB 0xBC
#define CRAFT_MSB 0xAF

 ; for ME218C Data Byte 0 Header
#define IBUTTON 0x01
#define NAVIGATION 0x02
#define ADMIRAL 0x04
#define WATERCRAFT 0x08
#define PING_RESPONSE 0x10
#define ACK 0x80

 ; Admiral Messages
#define STAND_DOWN 0x01
#define START_GAME 0x02
#define END_GAME 0x04
#define BLUE_GOAL 0x08
#define RED_GOAL 0x10
#define SOFT_RESET 0x20
#define HARD_RESET 0x40
#define ADMIRAL_PING 0x80

 ; Commands from Helm to Watercraft
#define NO_ACTION_1 0x88
#define NO_ACTION_2 0x00

 ; Commands from Watercraft to Helm
#define STAND_DOWN_RECEIVED_1 0x00
#define STAND_DOWN_RECEIVED_2 0x02

#define MATCHED_1 0x00
#define MATCHED_2 0x01

 ; Ping Responses
#define WAITING_IBUTTON 0x01
#define WAITING_PAIR 0x02
#define PAIRED 0x04

 ;game states
#define WaitForIbuttom 0x01
#define WaitForSync 0x07
#define Normal 0x02
#define StandDown 0x03
#define HardReset 0x04
#define SoftReset 0x05
#define Ping 0x06


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


#include "p16F690.inc"
__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC)

;variables
bytes_to_ignore equ 0x22 ;to store the address information received
message_received equ 0x23 ;to store the data received
message_to_send equ 0x24 ;to store the data to send
RFdata0_received equ 0x25 ;to store the data received
RFdata1_received equ 0x26 ;to store the data received
RFdata2_received equ 0x27 ;to store the data received
RFdata0_to_send equ 0x28 ;to store the data to_send
RFdata1_to_send equ 0x29 ;to store the data to_send
RFdata2_to_send equ 0x2A ;to store the data to_send
Source_Address_First equ 0x2B ;the most significant byte to address
Source_Address_Second equ 0x2C ;the least significant byte to address
Destination_Address_First equ 0x2D ;the most significant byte to address
Destination_Address_Second equ 0x2E ;the least significant byte to address

drive_pump equ 0x30; ;the re-structured data to send to the drive, pump control PIC through SPI
ID_stepper_servo equ 0x31; ;the re-structured data to send to the servo, stepper control PIC through SPI
team_ID equ 0x32; bit 6,7 indicate our boat's ID, the other bits are 0

temp equ 0x33; temporary space to store intermediate data
sum equ 0x34 ;to store the sum value
check_sum equ 0x35  ; to store the check sum value

MyHelmAddress equ 0x36 ;to store the least significant byte of paired helm address
GameState equ 0x37 ;game state

three_sec_timer_CNT equ 0x38
#define three_sec_timer_PER 0x72 ;=114

W_TEMP equ 0x70 ; to store w value for interrupts return
STATUS_TEMP equ 0x71 ; to store STATUS value for interrupts return

ReceiveIndex equ 0x3F ;the index to indicate where I am in the 11 byte frame
#define RX_START 0x40 ;Location of first byte received
;all ram space in between are used
#define RX_END 0x4B ;Location of last byte received

COUNTER equ 0x60
COUNTER2 equ 0x61

;i-buttom variables
#define IBUTTON_PORT PORTA
#define IBUTTON_PIN 0
#define TRISIBUTTON TRISA

#define IBUTTON_INPUT 0x01
#define IBUTTON_OUTPUT 0x00
#define IBUTTON_HI 0x01
#define IBUTTON_LO 0x00

FIRST_BYTE equ 0x66
SECOND_BYTE equ 0x67
THIRD_BYTE equ 0x68
TEMP equ 0x69
SECOND_BYTE_CHECK equ 0x6A
THIRD_BYTE_CHECK equ 0x6B

org 0
goto Main
org 4
goto ISR
org 5

;interrupt service routine
ISR: ;push
 movwf W_TEMP
 swapf STATUS, w
 movwf STATUS_TEMP

;test is RF receive interrupt
 banksel PIR1 ;bank 0
 btfsc PIR1, RCIF
 goto RF_Receive_INT
;test if timer0 interrupt
 btfsc INTCON, T0IF
 goto Timer_INT
;else jump out of interrupt
 goto end_of_INT

;RF receive interrupt service routine
RF_Receive_INT:
banksel RCREG ;go to bank 0
;clear the 3 sec time out counter
 movlw 0x00
 movwf three_sec_timer_CNT

 movf ReceiveIndex,W ;Load ReceiveIndex to FSR
 movwf FSR

 banksel  RCREG
 movf  RCREG,W ;Read data to W

 movwf INDF ;Store data in proper place
 movf INDF, w
 sublw START_BYTE
 btfsc STATUS,Z ;Test for a start byte
 call index_zero
 call IncReceive ;Already in bank 0
 goto end_of_INT

index_zero:
 movlw RX_START
 movwf ReceiveIndex
return

;
; Increments the ReceiveIndex variable to the next valid memory location
;

IncReceive:
 banksel  RCREG
 movf ReceiveIndex,W ;Test to see if index is at the end of
 sublw RX_END ;receive registers
 btfsc STATUS,Z ;If it is, load RX_START-1 into receive index
 call CarryReceive
 incf ReceiveIndex,F ;If index is not at end, increment receive index

 return

;
; Called when Receive Index needs to be reset
;

CarryReceive:
 movlw RX_START-1
 movwf ReceiveIndex
 return

;timer0 interrupt service routine, for 3 sec time out
Timer_INT:
 BANKSEL three_sec_timer_CNT
 INCF three_sec_timer_CNT, f
 MOVF three_sec_timer_CNT, W
 SUBLW three_sec_timer_PER
 BTFSS STATUS,Z
 goto end_of_timer0_INT

 CLRF three_sec_timer_CNT
;if three_sec_timer_CNT = 114, write navigation stop to RF data, no function calls
 ;toggle RC2 for debug
 banksel PORTC
 movf PORTC, w
 xorlw b'00000100'
 movwf PORTC

 ;toggle RC1 for debug
 banksel PORTC
 movf PORTC, w
 xorlw b'00000010'
 movwf PORTC

;write navigation 'stop' to RF data
 banksel RCREG ;bank 0
 movlw 0x48
 movwf FSR
 movlw 0x02
 movwf INDF

 movlw 0x49
 movwf FSR
 movlw 0x88
 movwf INDF

 movlw 0x4A
 movwf FSR
 movlw 0x00
 movwf INDF


end_of_timer0_INT:
;clear TIMER0 flag
 bcf INTCON, T0IF
 goto end_of_INT

end_of_INT:

 swapf STATUS_TEMP, w
 movwf STATUS
 swapf W_TEMP, f
 swapf W_TEMP, w
 RETFIE
;end of INT function


;function to move address and data infromation into variables
Get_Data_Function:
 banksel RCREG ;bank 0
 movlw 0x44
 movwf FSR
 movf INDF,W
 movwf Source_Address_First

 movlw 0x45
 movwf FSR
 movf INDF,W
 movwf Source_Address_Second

 movlw 0x48
 movwf FSR
 movf INDF,W
 movwf RFdata0_received

 movlw 0x49
 movwf FSR
 movf INDF,W
 movwf RFdata1_received

 movlw 0x4A
 movwf FSR
 movf INDF,W
 movwf RFdata2_received
return

;function to erase address and data infromation
;once this function is called, all 0s will be returned from Get_data_function, unless there has been another transmission
Erase_Data_Function:
 banksel RCREG ;bank 0
 movlw 0x44
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x45
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x48
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x49
 movwf FSR
 movlw 0x00
 movwf INDF

 movlw 0x4A
 movwf FSR
 movlw 0x00
 movwf INDF
return

;initialization function
Init:
;init variables:
banksel RCREG ;bank 0
movlw RX_START
movwf ReceiveIndex

;initialize timer 1, use internal oscillator by default
BSF T1CON, T1CKPS0 ;set timer 1 prescale to be 1:8
BSF T1CON, T1CKPS1
BSF T1CON, TMR1ON ;turn on timer 1

BcF CCP1CON, CCP1M0 ;set port CCP1 for output compare
BsF CCP1CON, CCP1M1
BcF CCP1CON, CCP1M2
BsF CCP1CON, CCP1M3

;initialize timer 2, for output compare
movlw b'11111111'
movwf T2CON ;set prescale and postscale of timer2 to be 16, and turn on timer2

;go to bank 2
BCF STATUS, 5
BSF STATUS, 6
clrf ANSEL ;set port A, B, C as non-analog pins
clrf ANSELH ;set port A, B, C as non-analog pins

;go to bank 1
BSF STATUS, 5
BCF STATUS, 6
;set RC6 as output to do slave select
;set RC7 for SPI output
;RC5 is input capture for transmitting start
;RC0 is general output for PIC select
MOVLW b'00100000'
MOVWF TRISC
;set RB6 as output for SPI clock
bcf TRISB, 6
;set RB4 as input for SPI in
bsf TRISB, 4

;set PA0, PA1, PA2 as input for address reading
BSF TRISA, 0
BSF TRISA, 1
BSF TRISA, 2


;initiate SCI:
;currently in bank 1
;set baud rate to be 9600:
bcf TXSTA, BRGH ;BRGH=0
bcf TXSTA, SYNC ;asynchronous
bsf BAUDCTL, BRG16 ;BRG16=1
movlw 0x40 ;SPBRG = 64
movwf SPBRG ;baud rate = 9615

bsf TXSTA, TXEN ;enable transmission

;go to bank 0
BCF STATUS, 5
BCF STATUS, 6

bsf RCSTA, SPEN ;enable serial port
bsf RCSTA, CREN ;enable receiving

;initiate SPI:
;setting timer2:
banksel PR2
movlw 0x30 ;TMR2 freq = Fosc/64/49
movwf PR2
banksel T2CON
movlw b'00000111' ;turn on timer2, prescaler 1:16, post scaler 1:1
movwf T2CON

 BANKSEL SSPSTAT
 CLRF SSPSTAT ;SMP = 0, CKE = 0

 BANKSEL SSPCON
 MOVLW 0x33 ;SSPEN, CKP=1, CLK freq = TMR2 output/2
 MOVWF SSPCON

 BANKSEL PIR1
 BCF PIR1,SSPIF
;go back to bank 0
 BANKSEL SSPBUF
 bsf PORTC, 0 ;select drive-pump control PIC
 MOVF SSPBUF,w ;receive and transmit OFF for the first time
 MOVLW 0x80
 MOVWF SSPBUF

ClearReceiveReg:
 BANKSEL RCREG ; Make sure that the receive register is clear
 MOVF RCREG,W
 BANKSEL PIR1
 BTFSC PIR1,RCIF
 GOTO ClearReceiveReg

;interrupts enables
banksel INTCON
bsf INTCON, GIE ;enable gloable interrupt enable
bsf INTCON, PEIE ;enable peripheral interrupt enable
banksel PIE1
bsf PIE1, RCIE ;enable SCI receive interrupt
banksel TXREG ;go back to bank 0
movlw 0x00
movwf PORTC ;portC output all low
return
;end of function initialization

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;data transmit function
Transmit_Function:
 banksel RCREG ;bank 0

back3:
 btfss PIR1, TMR1IF ;check timer, ensure that this transmit is more than 200ms later than last one
 goto back3

;send start byte
 movlw START_BYTE
 movwf TXREG
 call wait_for_transmssion_over

 movlw LENGTH_MSB
 movwf TXREG
 call wait_for_transmssion_over

 movlw LENGTH_LSB
 movwf TXREG
 call wait_for_transmssion_over

 movlw API_TX
 movwf TXREG
 call wait_for_transmssion_over

 movlw FRAME_ID
 movwf TXREG
 call wait_for_transmssion_over

 movf Destination_Address_First, w
 movwf TXREG
 call wait_for_transmssion_over

 movf Destination_Address_Second, w
 movwf TXREG
 call wait_for_transmssion_over

 movlw 0x01 ;0x01 for the option byte, to not request acknowledgement
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata0_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata1_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

 movf RFdata2_to_send, w
 movwf TXREG
 call wait_for_transmssion_over

;calculate check sum value
 movlw 0x00
 movwf sum
 movlw API_TX
 addwf sum, f
 movlw FRAME_ID
 addwf sum, f
 movf Destination_Address_First, w
 addwf sum, f
 movf Destination_Address_Second, w
 addwf sum, f
 movlw 0x01
 addwf sum, f
 movf RFdata0_to_send, w
 addwf sum, f
 movf RFdata1_to_send, w
 addwf sum, f
 movf RFdata2_to_send, w
 addwf sum, f
;check_sum = 0xff - sum
 movf sum, w
 sublw 0xff
 movwf check_sum

 movf check_sum, w
 movwf TXREG
 call wait_for_transmssion_over

 bcf PIR1, TMR1IF ;clear timer 1 flag
return

;the function to wait until the trasmit shift register of PIC is empty
wait_for_transmssion_over:
;goto bank 1
 BSF STATUS, 5
 BCF STATUS, 6

wait_transmssion:
 btfsc TXSTA, TRMT
 goto end_of_wait_transmssion
 goto wait_transmssion

end_of_wait_transmssion:
;go back to bank 0
 BCF STATUS, 5
 BCF STATUS, 6
return
;end of function wait_for_transmssion_over



;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;i-buttom functions;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;


LoadIButtonBytes:
 ; Set Ports A and C to digital
 BANKSEL ANSEL
 CLRF ANSEL
 CLRF ANSELH

 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

WaitForIButton:
 ;CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

 ;CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Compensated_Wait500us
;;;;;;;;;;;;;;;code add by me to do admiral ping response;;;;;;;;;;;;;;;;;;;;;;
;the following code takes 15us to execute for 10MHz Crystal
 call Get_Data_Function
 movf RFdata0_received, w
 sublw ADMIRAL  ;check if the Header Data is for Admiral
 ;if (is Admiral), call Admiral function, else keep checking if it's other situation
 btfss STATUS, Z
goto No_ping


 movf RFdata2_received, w
 sublw ADMIRAL_PING ;check if the Header Data is for ADMIRAL_PING
 ;if (is ADMIRAL_PING), change game state
 btfsc STATUS, Z
goto No_ping
 call Erase_Data_Function
 call Ping_Respond_Function ;erase get_data value at the meantime

No_ping:
;;;;;;;;;;;;;;;code add by me to do admiral ping response;;;;;;;;;;;;;;;;;;;;;;

 ;CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
 MOVWF TRISIBUTTON
 CALL Wait50us

 ; Check if pin is LO --> iButton Present
 BANKSEL IBUTTON_PORT
 BTFSC IBUTTON_PORT,IBUTTON_PIN
 GOTO WaitForIButton ;Repeat until found

 ;Once found then:
 CALL ConductReset

 CALL ReadROM

 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit

 BANKSEL THIRD_BYTE
 MOVF THIRD_BYTE,0
 MOVWF FIRST_BYTE

 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit

 BANKSEL THIRD_BYTE
 MOVF THIRD_BYTE,0
 MOVWF SECOND_BYTE

 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit
 CALL ReadBit

 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us

  return


ConductReset:
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait500us
; CALL RaiseIBUTTON
 BANKSEL IBUTTON_PORT
 BSF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait500us
 RETURN

ReadROM:
; Send ReadROM command
; Need to send 0x33 = 00110011, LSB first
 CALL SendIBUTTONHI
 CALL SendIBUTTONHI
 CALL SendIBUTTONLO
 CALL SendIBUTTONLO
 CALL SendIBUTTONHI
 CALL SendIBUTTONHI
 CALL SendIBUTTONLO
 CALL SendIBUTTONLO
 RETURN

ReadBit:
; Begin reading
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait5us

; CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
 MOVWF TRISIBUTTON

 CALL Wait5us
 CALL Wait5us


 BANKSEL IBUTTON_PORT
 BTFSC IBUTTON_PORT,IBUTTON_PIN
 GOTO RECEIVE_BIT_HI
 GOTO RECEIVE_BIT_LO
RECEIVE_BIT_HI:
 BANKSEL THIRD_BYTE
 RRF THIRD_BYTE,1
 NOP
 NOP
 BSF THIRD_BYTE,7
 CALL Wait60us
 RETURN

RECEIVE_BIT_LO:
 BANKSEL THIRD_BYTE
 RRF THIRD_BYTE,1
 NOP
 NOP
 BCF THIRD_BYTE,7
 CALL Wait50us
 CALL Wait5us
 CALL Wait5us
 RETURN



SendIBUTTONHI:
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait5us

; CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
  MOVWF TRISIBUTTON

 CALL Wait70us

 RETURN

SendIBUTTONLO:
; CALL MakeIBUTTONOutput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_OUTPUT
 MOVWF TRISIBUTTON

; CALL LowerIBUTTON
 BANKSEL IBUTTON_PORT
 BCF IBUTTON_PORT,IBUTTON_PIN

 CALL Wait60us

; CALL MakeIBUTTONInput
 BANKSEL TRISIBUTTON
 MOVLW IBUTTON_INPUT
 MOVWF TRISIBUTTON
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 RETURN

Wait5us:
 NOP
 NOP
 NOP
 NOP
 NOP
 RETURN

Wait1s:
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL  Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us
 CALL Wait500us




Wait500us:
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
  CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 RETURN

Compensated_Wait500us:
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait50us
 CALL Wait5us
 ;CALL Wait5us
 ;CALL Wait5us
 ;CALL Wait5us
 RETURN

Wait50us:
  CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 NOP
 NOP
 NOP
 NOP
 NOP
 NOP
 NOP
 NOP

  RETURN

Wait70us:
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 NOP
 NOP
 NOP
 NOP

 RETURN

Wait60us:
 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us
 CALL Wait5us
 CALL Wait5us

 CALL Wait5us

 RETURN

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;Game Control Function;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
Game_Control:
 banksel RCREG ;bank 0
 movf GameState, w
 sublw WaitForIbuttom
 btfsc STATUS, Z
 goto Wait_For_Ibuttom_State ;wait for i-buttom state

 banksel RCREG ;bank 0
 movf GameState, w
 sublw WaitForSync
 btfsc STATUS, Z
 goto Wait_For_Sync_State ;have read i-buttom, wait for syncronize state

 movf GameState, w
 sublw Normal
 btfsc STATUS, Z
 goto Normal_State ;normal game state

 movf GameState, w
 sublw StandDown
 btfsc STATUS, Z
 goto Stand_Down_State ;stand down game state

 movf GameState, w
 sublw HardReset
 btfsc STATUS, Z
 goto Hard_Reset_State ;hard_reset game state

 movf GameState, w
 sublw SoftReset
 btfsc STATUS, Z
 goto Soft_Reset_State ;soft_reset game state

return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;;;;;Game State Functions;;;;;;;
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;the wait for ibuttom state
Wait_For_Ibuttom_State:
 banksel RCREG ;bank 0
retest_ibuttom:
 call LoadIButtonBytes
 ;store the first i-buttom reading also in another place for later comparison
 movf SECOND_BYTE, w
 movwf SECOND_BYTE_CHECK
 movf THIRD_BYTE, w
 movwf THIRD_BYTE_CHECK

 ;ibuttom reading for second time
 call LoadIButtonBytes
 ;check if reading is the same with last time
 movf SECOND_BYTE, w
 subwf SECOND_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom
 movf THIRD_BYTE, w
 subwf THIRD_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom

 ;ibuttom reading for third time
 call LoadIButtonBytes
 ;check if reading is the same with last time
 movf SECOND_BYTE, w
 subwf SECOND_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom
 movf THIRD_BYTE, w
 subwf THIRD_BYTE_CHECK, w
 btfss STATUS, Z
goto retest_ibuttom

 movf THIRD_BYTE, w
 sublw 0x00
 btfsc STATUS, Z
goto retest_ibuttom

 movf THIRD_BYTE, w
 sublw 0xFF
 btfsc STATUS, Z
goto retest_ibuttom

 movlw WaitForSync
 movwf GameState
return

;once read i-buttom, try to match with my helm
Wait_For_Sync_State:
 banksel RCREG ;bank 0
 call Get_Data_Function ;get the rf data
;if i-buttom
 movf RFdata0_received, w
 sublw IBUTTON
 btfsc STATUS, Z
goto check_ibuttom

;if admiral ping
 movf RFdata0_received, w
 sublw ADMIRAL  ;check if the Header Data is for Admiral
 btfsc STATUS, Z
goto respond_admiral
return

check_ibuttom:
 movf THIRD_BYTE, w
 subwf RFdata1_received, w
 btfss STATUS, Z
return

 movf SECOND_BYTE, w
 subwf RFdata2_received, w
 btfss STATUS, Z
return

 ;if reach here, mean it's my helm's signal, record it's address
 movf Source_Address_Second, w
 movwf MyHelmAddress

 ;send back MATCHED signal
 movlw HELM_MSB
 movwf Destination_Address_First
 movf MyHelmAddress, w
 movwf Destination_Address_Second
 movlw WATERCRAFT
 movwf RFdata0_to_send
 movlw MATCHED_1
 movwf RFdata1_to_send
 movlw MATCHED_2
 movwf RFdata2_to_send
 call Transmit_Function

 ;go to in-game state
 movlw Normal
 movwf GameState

;turn on timer0 for 3 sec time out
 banksel OPTION_REG ;bank 1
 movlw b'00000111'
 movwf OPTION_REG
 banksel RCREG ;bank 0
 movlw 0x00
 movwf three_sec_timer_CNT
;enable timer0 interrupt
 bsf INTCON, T0IE
;show team affiliation on the boat
 call Determine_team
return

respond_admiral:
 movf RFdata2_received, w
 sublw ADMIRAL_PING ;check if the Header Data is for ADMIRAL_PING
 btfsc STATUS, Z
 call Ping_Respond_Function
 call Erase_Data_Function
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;function to decide which team I'm in based on i-buttom reading
Determine_team:
 banksel RCREG ;bank 0
 btfsc SECOND_BYTE, 0 ;test if even or odd number
 goto red
 goto blue
return

red:
 bsf PORTC, 1
 bcf PORTC, 2
return

blue:
 bsf PORTC, 2
 bcf PORTC, 1
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
;general in-game state
Normal_State:
 banksel RCREG ;bank 0
 call Determine_team
 call Get_Data_Function ;get the rf data

 movf RFdata0_received, w
 sublw IBUTTON ;check if the Header Data is for I-buttom
 ;if (is I-buttom), call i-buttom function, else keep checking if it's other situation
 btfsc STATUS, Z
 goto I_Buttom_Respond

 movf RFdata0_received, w
 sublw NAVIGATION ;check if the Header Data is for navigation
 ;if (is navigation), call navigation function, else keep checking if it's other situation
 btfsc STATUS, Z
 goto Navigation_Function

 movf RFdata0_received, w
 sublw ADMIRAL  ;check if the Header Data is for Admiral
 ;if (is Admiral), call Admiral function, else keep checking if it's other situation
 btfsc STATUS, Z
 goto Admiral_Function
return

;3 possible commands the boat is likely to receive and respond to: ibuttom, navigation, and admiral:

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;
I_Buttom_Respond:
;first check if the i-buttom boadcast is from my helm, if not, discard
 banksel RCREG ;bank 0
 movf Source_Address_Second, w
 sublw MyHelmAddress
 btfss STATUS, Z
return ;if address is not my helm's, just return
 ;if address is my helm's, send MATCH to it again
 movlw HELM_MSB
 movwf Destination_Address_First
 movf MyHelmAddress, w
 movwf Destination_Address_Second
 movlw WATERCRAFT
 movwf RFdata0_to_send
 movlw MATCHED_1
 movwf RFdata1_to_send
 movlw MATCHED_2
 movwf RFdata2_to_send
 call Transmit_Function
return
;end of function Normal_State


Navigation_Function:
banksel TXREG ;bank 0

 movf Source_Address_Second, w
 sublw MyHelmAddress  ;check if the Navigation Data is really from my helm
 ;to prevent responding to other guys' possible bad signal
 btfss STATUS, Z
 ;if not from my helm, just jump out of function
return

;re-structure the RFdata1 and RFdata2 to get drive_pump byte
movf RFdata1_received, w
movwf drive_pump
swapf drive_pump, f ;now the drive signal is in upper 4 bits
movlw 0xF0
andwf drive_pump, f ;now the lower 4 bits in drive_pump are all 0's
movf RFdata2_received, w
movwf temp
movlw 0x0F
andwf temp, f ;now the upper 4 bits in temp are all 0's
movf temp, w
iorwf drive_pump, f ;now the upper 4 bits is drive signal, lower 4 bits are the pump signal, ready to send through SPI


;re-structure the RFdata1 and RFdata2 to get ID_stepper_servo byte
movf team_ID, w
movwf ID_stepper_servo ;upper 2 bits in ID_stepper_servo is team ID
movlw b'11000000'
andwf ID_stepper_servo, f ;ensure the lower 6 bits in ID_stepper_servo are all 0's
movf RFdata2_received, w
movwf temp
movlw b'00110000'
andwf temp, f ;now the upper 2 bits and lower 4 bits in temp are all 0's
movf temp, w
iorwf ID_stepper_servo, f ;now ID and stepper information is in ID_stepper_servo
movf RFdata1_received, w
movwf temp
swapf temp, f ;now the direction signal is in lower 4 bits of temp
movlw b'00001111'
andwf temp, f ;now the upper 4 bits in temp are all 0's
movf temp, w
iorwf ID_stepper_servo, f ;now ID and stepper and direction information are in ID_stepper_servo, ready to send through SPI

;send the re-structured data to Mark's two PICs
call Talk_To_Mark

return
;end of Navigation_Function

;the function to talk to mark's two PICs
Talk_To_Mark:
 banksel TXREG ;bank 0
 bsf PORTC, 0 ;select drive-pump control PIC
 ;wait for SPI ready to send new data
 BANKSEL SSPSTAT
 wait_for_SPI1:
 BTFSS SSPSTAT,BF ;Wait for last receive complete
 GOTO wait_for_SPI1
 BANKSEL SSPBUF ;Get received data
 MOVF SSPBUF,w
 movf drive_pump, w
 movwf SSPBUF ;send data to PIC1 trough SPI

 bcf PIR1, TMR1IF ;clear the output compare flag
 before:
 btfss PIR1, TMR1IF
 goto before

 bcf PORTC, 0 ;select ID_stepper_servo control PIC
 ;wait for SPI ready to send new data
 BANKSEL SSPSTAT
 wait_for_SPI2:
 BTFSS SSPSTAT,BF ;Wait for last receive complete
 GOTO wait_for_SPI2
 BANKSEL SSPBUF ;Get received data
 MOVF SSPBUF,w
 movf ID_stepper_servo, w
 movwf SSPBUF ;send data to PIC2 trough SPI

 bcf PIR1, TMR1IF ;clear the output compare flag
 before2:
 btfss PIR1, TMR1IF
 goto before2
return
;end of talk to mark


Admiral_Function:
 banksel RCREG ;bank 0

 movf RFdata2_received, w
 sublw STAND_DOWN ;check if the Header Data is for stand-down
 ;if (is stand-down), change game state
 btfsc STATUS, Z
 goto case_stand_down

 movf RFdata2_received, w
 sublw HARD_RESET ;check if the Header Data is for HARD_RESET
 ;if (is HARD_RESET), change game state
 btfsc STATUS, Z
 goto case_hard_reset

 movf RFdata2_received, w
 sublw ADMIRAL_PING ;check if the Header Data is for ADMIRAL_PING
 ;if (is ADMIRAL_PING), change game state
 btfsc STATUS, Z
 goto case_admiral_ping

 movf RFdata2_received, w
 sublw SOFT_RESET ;check if the Header Data is for SOFT_RESET
 ;if (is SOFT_RESET), change game state
 btfsc STATUS, Z
 goto case_soft_reset
return

case_stand_down:
 movlw StandDown
 movwf GameState
return

case_hard_reset:
 movlw HardReset
 movwf GameState
return

case_soft_reset:
 movlw SoftReset
 movwf GameState
return

case_admiral_ping:
 call Erase_Data_Function
 call Ping_Respond_Function
return
;end of Admiral_Function
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Stand_Down_State:
 banksel RCREG
 call StopBoat ;stop all actuators

 ;acknowledge to the admiral
 movlw ADMIRAL_ADDRESS_MSB
 movwf Destination_Address_First
 movlw ADMIRAL_ADDRESS_LSB
 movwf Destination_Address_Second
 movlw ACK
 movwf RFdata0_to_send
 movlw 0x00
 movwf RFdata1_to_send
 movlw 0x01
 movwf RFdata2_to_send
 call Transmit_Function

 movlw HELM_MSB
 movwf Destination_Address_First
 movf MyHelmAddress, w
 movwf Destination_Address_Second
 movlw WATERCRAFT
 movwf RFdata0_to_send
 movlw STAND_DOWN_RECEIVED_1
 movwf RFdata1_to_send
 movlw STAND_DOWN_RECEIVED_2
 movwf RFdata2_to_send
 call Transmit_Function

 ;check if helm acknowledges
 call Get_Data_Function
 movf RFdata0_received, w
 sublw ACK
 btfsc STATUS, Z
 goto HelmAcked ;normal game state
return

HelmAcked:
 movlw Normal ;game state go back to normal
 movwf GameState
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Hard_Reset_State:
 banksel RCREG
 call StopBoat ;stop all actuators
 movlw WaitForIbuttom ;game state go back to waiting for i-buttom
 movwf GameState
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Soft_Reset_State:
 banksel RCREG
 call StopBoat ;stop all actuators
 ;send back acknowledgement
 movlw ADMIRAL_ADDRESS_MSB
 movwf Destination_Address_First
 movlw ADMIRAL_ADDRESS_LSB
 movwf Destination_Address_Second
 movlw ACK
 movwf RFdata0_to_send
 movf RFdata1_received, w
 movwf RFdata1_to_send
 movf RFdata2_received, w
 movwf RFdata2_to_send
 call Transmit_Function
 movlw Normal ;game state go back to normal
 movwf GameState
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Ping_Respond_Function:
 banksel RCREG ;bank 0
 movlw ADMIRAL_ADDRESS_MSB
 movwf Destination_Address_First
 movlw ADMIRAL_ADDRESS_LSB
 movwf Destination_Address_Second
 movlw PING_RESPONSE
 movwf RFdata0_to_send

 movf GameState, w
 sublw WaitForIbuttom
 btfsc STATUS, Z
 goto no_ibuttom ;normal game state

 movf GameState, w
 sublw WaitForSync
 btfsc STATUS, Z
 goto Unpaired ;normal game state

 movlw 0x04
 movwf RFdata1_to_send
 movf MyHelmAddress, w
 movwf RFdata2_to_send
 call Transmit_Function
return

no_ibuttom:
 movlw 0x01
 movwf RFdata1_to_send
 movlw 0x00
 movwf RFdata2_to_send
 call Transmit_Function
return

Unpaired:
 movlw 0x02
 movwf RFdata1_to_send
 movlw 0x00
 movwf RFdata2_to_send
 call Transmit_Function
return


;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

StopBoat:
 banksel RCREG
 movlw 0x80 ;boat stop, pump off
 movwf drive_pump
 movlw 0x08 ;team ID led off, stepper off, servo rest in the middle
 movwf ID_stepper_servo
 call Talk_To_Mark
return

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;



Main:

;delay to wait for power up
LONG_DELAY:
 movlw 0xFF ; ~16ms
 movwf COUNTER
LOOP3:
 movlw 0xFF
 nop
 nop
 nop
 movwf COUNTER2
LOOP2:
 decfsz COUNTER2,f
 goto LOOP2


 decfsz COUNTER,f
 goto LOOP3

;Input capture Init, I/O pins Init, SCI Init
call Init

;initial game state
movlw WaitForIbuttom
movwf GameState
movlw 0x09
movwf MyHelmAddress

movlw 0xab
movwf SECOND_BYTE
movlw 0xab
movwf THIRD_BYTE

movlw 0x00
movwf RFdata0_received
movlw 0x00
movwf RFdata1_received
movlw 0x00
movwf RFdata2_received

movlw 0x00
movwf RFdata0_to_send
movlw 0x00
movwf RFdata1_to_send
movlw 0x00
movwf RFdata2_to_send

movlw 0x00
movwf team_ID
call StopBoat
Loop:

call Game_Control
;call Normal_State

;call Wait_For_Sync_State
;call Navigation_Function
; call Get_Data_Function ;get the rf data
;call Talk_To_Mark
;call Transmit_Function

; movf RFdata0_received, w
; sublw ADMIRAL  ;check if the Header Data is for Admiral
 ;if (is Admiral), call Admiral function, else keep checking if it's other situation
; btfss STATUS, Z
;goto Loop

; movf RFdata2_received, w
; sublw ADMIRAL_PING ;check if the Header Data is for ADMIRAL_PING
 ;if (is ADMIRAL_PING), change game state
; btfss STATUS, Z
;goto Loop

; call Ping_Respond_Function


goto Loop

END

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Propeller / Pump Chip Pseudocode

Purpose – To set a PWM duty cycle for a propeller and pump based on data received through SPI on a PIC 16F690. We desire two channels so it will be software driven since hardware supports only 1 channel of PWM

Module Level Defines:

· TMR2_SCALE, prescaler, etc. to set Freq = 5 MHz

· TMR2_PER, number of clock ticks

· PWM_FULL, designates resolution of PWM duty cycle

· PORTC_RESET, designates which pins are used for PWM

· COUNTER, for-loop index

· PARSE_REG, location for next command to be parsed

· PWM1, duty cycle for PWM chan 1

· PWM2, duty cycle for PWM chan 2

· TMR_COUNTER, for-loop index

· TMR_COUNTER2, for-loop index

Main:

· Wait for chip to start-up completely

· Initialize Pins:

§ Set all to digital

§ Set all to output, except C6, B4-6 (clock, data-in, SS)

§ Clear PWM registers

· Initialize SSP:

§ SMP = 0, CKE = 0, CKP = 1

§ SS enabled, Slave

· Initialize Timer2

§ Set prescaler and post scaler to get >20 kHz freq

§ Clear Timer2 interrupt flag

· Raise all lines enabled for PWM

· Parse the initial values for the PWM channels

· Loop through expirations of the timer

· Whenever timer has expired a number of times equal to a PWM duty cycle, lower that line

· Whenever timer has expired a number of times equal to the full PWM period, raise all lines

· Continually check for new command from SPI

Parse:

· MSB of command sets direction for propeller

· Next 3 MSBs set the 3 bit duty cycle of PWM1

· 4 LSBs indicate pump PWM. Ignore LSB and set 3 MSBs as PWM2 duty cycle

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Propeller / Pump Chip Code Listing

list P=PIC16F690

#include "p16F690.inc"

__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC)

org 0

GOTO Main

org 5

TMR2_SCALE equ b'00000100' ; Freq = 20 Mhz/4 *(1/1)*(1/1)

TMR2_PER equ b'00000001' ;Set timer period

PWM_FULL equ b'00000111' ; number of timer expirations for a full PWM period

PORTC_RESET equ b'00000111' ; what to write to port c at start of each period

; PWM REGISTERS

COUNTER equ 0x20

PARSE_REG equ 0x21 ; register for command from SPI

PWM1 equ 0x22 ; duty for the propeller

PWM2 equ 0x23 ; duty for the pump

; DELAY TIMER

TMR_COUNTER equ 0x24 ; for-loop index

TMR_COUNTER2 equ 0x25 ; for-loop index

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Main:

CALL LONG_DELAY ; wait for chip to start up

CALL InitPins ; Initialize pins

CALL InitSSP ; Init SPI

BANKSEL PIR1 ;Start with timer not expired

BCF PIR1,TMR2IF

; Initialize Timer for Freq > 20 kHz

BANKSEL T2CON

MOVLW TMR2_SCALE ;Set the scalers

MOVWF T2CON

BANKSEL PR2

MOVLW TMR2_PER ;Set the period

MOVWF PR2

; Raise all lines for PWM

BANKSEL PORTC

MOVLW PORTC_RESET

MOVWF PORTC

BANKSEL COUNTER

CLRF COUNTER

;Set INITIAL SPEED AND WATER POWER

; Each PWM set to duty = 0

BANKSEL PARSE_REG

MOVLW b'10000000'

MOVWF PARSE_REG

; Command parsed - loaded into PWM duty cycle registers

CALL PARSE

; Skip SPI read and timer expire for first reading

GOTO ENTER_PWM

DO_PWM:

;Check for a new PWM setting

BANKSEL SSPSTAT

BTFSS SSPSTAT,BF ;Wait for receive complete

GOTO NO_SETTING

; Put received byte into location for next command to parse

BANKSEL SSPBUF

MOVF SSPBUF,W

BANKSEL PARSE_REG

MOVWF PARSE_REG

; Write the same data back to the buffer, minus one

BANKSEL SSPBUF

ADDLW 0xFF

MOVWF SSPBUF

; Used for testing validity of received data

; Only parse data if the PIC is selected

BANKSEL PORTB

BTFSC PORTB,5 ; Check if SS enabled

CALL PARSE

GOTO NO_SETTING

NO_SETTING:

BANKSEL PIR1

BTFSS PIR1,TMR2IF ;Wait for expire

GOTO $-1

BCF PIR1,TMR2IF ;Clear expire

; With current timner period this expiration is nearly equivalent to a single NOP

; counter ++

BANKSEL COUNTER

INCF COUNTER, W

MOVWF COUNTER

ENTER_PWM:

BANKSEL COUNTER

MOVF COUNTER,W

SUBLW PWM_FULL

; If counter = pwm full

BTFSC STATUS,Z

; raise all PWM lines

CALL RAISE_ALL_ACTIVE

BANKSEL COUNTER

MOVF COUNTER,W

SUBWF PWM1,0

; If counter = PWM 1 duty

BTFSC STATUS,Z

; Lower PWM 1

CALL LOWER_PWM1

BANKSEL COUNTER

MOVF COUNTER,W

SUBWF PWM2,0

; If counter = pwm 2 duty

BTFSC STATUS,Z

; Lower PWM 2

CALL LOWER_PWM2

; Repeat -- look for new command, then handle timer

GOTO DO_PWM

; PWM1 is at port C0

LOWER_PWM1:

BANKSEL PORTC

BCF PORTC,0

RETURN

' PWM2 is at port C1

LOWER_PWM2:

BANKSEL PORTC

BCF PORTC,1

RETURN

; Check which PWM lines are not set to duty = 0

; Raise only those lines that are active

RAISE_ALL_ACTIVE:

; Check for any active PWM lines

; Makes sure duty cycle of 0 is upheld

BANKSEL PWM1

MOVF PWM1,1

BTFSS STATUS,Z

BSF PORTC,0

MOVF PWM1,1

BTFSC STATUS,Z

BCF PORTC,0

MOVF PWM2,1

BTFSS STATUS,Z

BSF PORTC,1

MOVF PWM2,1

BTFSC STATUS,Z

BCF PORTC,1

; Reset counter for start of next period

BANKSEL COUNTER

CLRF COUNTER

GOTO ENTER_PWM

PARSE:

; Handle command received by SPI

CALL SET_DRIVE_PWM

CALL SET_PUMP_PWM

RETURN

; Handle 4 MSBs

SET_DRIVE_PWM:

BANKSEL PARSE_REG

; MSB controls direction

BTFSC PARSE_REG,7

GOTO FORWARD

GOTO REVERSE

FORWARD:

BANKSEL PORTC

; direction sets value on IN1 and IN2 on H-bridge

BSF PORTC,3

BANKSEL PARSE_REG

SWAPF PARSE_REG,0

ANDLW b'00000111'

; Write bits 4-6 to PWM1 duty cycle

MOVWF PWM1

MOVWF PORTA ; for debugging

RETURN

REVERSE:

BANKSEL PORTC

; direction sets value on IN1 and IN2 for H-bridge

BCF PORTC,3

BANKSEL PARSE_REG

SWAPF PARSE_REG,0

; duty cycle is inverted for reverse, 000 is full reverse

; 111 is zero reverse

XORLW b'00000111' ; toggle to get duty cycle

ANDLW b'00000111' ; but only last 3 bits

MOVWF PWM1

MOVWF PORTA

RETURN

; 4 LSBs control pump PWM

; LSB discarded to keep 3 bit PWM

SET_PUMP_PWM:

BANKSEL PARSE_REG

RRF PARSE_REG,0

ANDLW b'00000111'

BANKSEL PWM2

MOVWF PWM2

RETURN

; Arbitrary long delay

LONG_DELAY:

CALL DELAY

CALL DELAY

CALL DELAY

CALL DELAY

CALL DELAY

RETURN

DELAY:

movlw 0xFF ; ~16ms

movwf TMR_COUNTER

LOOP3:

movlw 0xFF

movwf TMR_COUNTER2

LOOP2:

decfsz TMR_COUNTER2,f

goto LOOP2

decfsz TMR_COUNTER,f

goto LOOP3

return

; Initialization sequence

InitPins:

; Set Ports A and C to digital

BANKSEL ANSEL

CLRF ANSEL

CLRF ANSELH

; Set Data Directions

BANKSEL TRISA

CLRF TRISA

CLRF TRISB

CLRF TRISC

BSF TRISC,6 ; SS

BSF TRISB,5 ; PIC select = SS

BSF TRISB,6 ; clock

BSF TRISB,4 ; data in

; Clear all PWM values

BANKSEL PWM1

CLRF PWM1

CLRF PARSE_REG

CLRF PWM2

RETURN

InitSSP:

BANKSEL SSPSTAT

CLRF SSPSTAT ;SMP = 0, CKE = 0

BANKSEL SSPCON

BSF SSPCON,SSPEN

BSF SSPCON,CKP

BSF SSPCON,SSPM2

; CKP = 1

; SS enabled, Slave

; Read and write buffer once to insure it is fresh

BANKSEL SSPBUF

MOVF SSPBUF,W

MOVWF SSPBUF

RETURN

END

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Rudder / Turret Chip Pseudocode

Purpose – To set a the servo angle and make the turret step based on commands received via SPI on the PIC16F690.

Main:

· Wait for chip to start-up completely

· Initialize Pins:

§ Set all to digital

§ Set all to output, except C6, B4-6 (clock, data-in, SS)

§ Clear PWM registers

· Initialize SSP:

§ SMP = 0, CKE = 0, CKP = 1

§ SS enabled, Slave

· Parse the initial values

· Loop through a counter

· Whenever counter reaches a number of times equal to a PWM duty cycle, lower that line

· Take a step each period if it has been requested

· De-energize stepper if hasn’t changed in a while

· Continually check for new command from SPI

Parse:

· Bits 4 and 5 set which direction and whether or not to step

· Bits 0-3 set the servo angle

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Rudder / Turret Chip Code Listing

list P=PIC16F690

#include "p16F690.inc"

__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC)

org 0

GOTO Main

org 5

PWM_FULL equ b'00001111';d'31'

DUTY_MASK equ b'00001111'

; PWM stuff

COUNTER1 equ 0x22

COUNTER2 equ 0x23

COUNTER1_INIT equ b'11100000' ; controls frequency of servo

PULSE_PERIOD equ b'00011111' ; full length of period including hi and lo time

PULSE_WIDTH equ 0x24 ; currently commanded length of pulse width, from 0 to 16

PULSE_WIDTH_OFFSET equ b'00001110' ; controls offset. Adds to pulse_width to prevent jamming servo at edges

; Stepper

STEPS_LEFT equ 0x25 ; number of steps still to take

STEP_DIR equ 0x26 ;bit 0 is HI for Forward Step, LO for Reverse Step

C_TEMP equ 0x27

STEP_INDEX equ 0x28 ; current index in step table

STEP_OFF_COUNT equ 0x2B ; number of cycles no step has occurred

STEP_OFF equ b'00001111' ; value to write stepper to de-energize

STEPS_TAKEN equ 0x2C ; running counter of number of steps taken. Used to prevent winding

MAX_STEPS equ b'00001111' ; only allow 15 steps to right

MIN_STEPS equ b'11110000' ; only allow a displacement of 15 steps to the left

;Delay timer

TMR_COUNTER equ 0x29

TMR_COUNTER2 equ 0x2A

; COM REGISTERS

PARSE_REG equ 0x21 ; next command to parse

; LOOKUP TABLE

FullStep:

ADDWF PCL,F

RETLW b'00000110' ;Step 0

RETLW b'00001010' ; 1

RETLW b'00001001' ; 2

RETLW b'00000101' ; 3

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Main:

CALL LONG_DELAY ; wait for chip to start up

CALL InitPins ;Initialize pins

CALL InitSSP ; Initialize SPI

; Set up counters for the Servo pulse-width

BANKSEL COUNTER1

MOVLW COUNTER1_INIT

MOVWF COUNTER1

CLRF COUNTER2

; Set up stepper indexing

CLRF STEP_INDEX

CLRF STEPS_LEFT

CLRF STEP_OFF_COUNT

CLRF STEPS_TAKEN

CLRF PULSE_WIDTH

; Initial values to set everything:

; take 1 step right

; center the rudder

BANKSEL PARSE_REG

MOVLW b'10011000' ;Run servo with pulse width ~1.5 ms, take 1 step,led2 on

MOVWF PARSE_REG

CALL PARSE

LOOP:

CHECK:

;Check for a new PWM setting

BANKSEL SSPSTAT

BTFSS SSPSTAT,BF ;Wait for receive complete

GOTO AFTER_PARSE

BANKSEL SSPBUF ;if ssp flag set

MOVF SSPBUF,W ;read ssp

BANKSEL PARSE_REG

MOVWF PARSE_REG ;move to parse register

; subtract one for debugging

BANKSEL SSPBUF

ADDLW 0xFF ;write dummy reply into SSP buffer

MOVWF SSPBUF

; check to see if pic has ben enabled

BANKSEL PORTB

BTFSS PORTB,5 ; Check if SS enabled

CALL PARSE ;parse if this pic selected

AFTER_PARSE:

; Servo Pulse-Width counter

BANKSEL COUNTER1

INCFSZ COUNTER1,1 ;increment servo counter

GOTO LOOP ;if counter not 0 return

;Reset counter 1

BANKSEL COUNTER1

MOVLW COUNTER1_INIT ;reinitialize counter

MOVWF COUNTER1

INCF COUNTER2,1 ;increment second counter

; Check if an entire period has expired, thus requiring to set the line HI for new period

MOVF COUNTER2,W

SUBWF PULSE_PERIOD,W ;check if counter 2 has reached pulse period

BTFSS STATUS,Z

; If entire period has not expired, then we must check if the pulse width has expired

GOTO LOWER_PULSE ;lower pulse if period not over

; If it has expired, set servo pin high and take a single step

BANKSEL PORTC

BSF PORTC,4 ;set servo pin high

CALL TakeStep

BANKSEL COUNTER2 ;clear counter2

CLRF COUNTER2

GOTO LOOP

LOWER_PULSE:

BANKSEL COUNTER2

MOVF COUNTER2,W

SUBWF PULSE_WIDTH,W ;check if counter 2 has reached pulse width requested by SPI

BTFSS STATUS,Z

GOTO LOOP

BANKSEL PORTC

BCF PORTC,4

GOTO LOOP

TakeStep:

;Don't step if no steps are left

BANKSEL STEPS_LEFT

MOVF STEPS_LEFT,1 ;move steps_left to itself

BTFSC STATUS,Z ;check if it was zero

GOTO TurnStepperOffTimer ;De-energize coils if not taking steps

;If steps have been requested, but at angle limit,

; ignore one direction

BANKSEL STEP_DIR

BTFSS STEP_DIR,0

GOTO HANDLE_REVERSE

GOTO HANDLE_FORWARD

HANDLE_FORWARD:

BANKSEL STEPS_TAKEN

MOVLW MAX_STEPS

SUBWF STEPS_TAKEN,W

BTFSC STATUS,Z

GOTO StepperAtLimit

GOTO ACTUALLY_TAKE_STEP

HANDLE_REVERSE:

BANKSEL STEPS_TAKEN

MOVLW MIN_STEPS

SUBWF STEPS_TAKEN,W

BTFSC STATUS,Z

GOTO StepperAtLimit

GOTO ACTUALLY_TAKE_STEP

ACTUALLY_TAKE_STEP:

;There are steps left to take, and we are not at the limits

DECF STEPS_LEFT,1

CLRF STEP_OFF_COUNT

;Figure out which direction

BTFSC STEP_DIR,0

GOTO StepForward

GOTO StepReverse

StepForward

BANKSEL PORTC

MOVF PORTC,W

ANDLW b'11110000'

MOVWF C_TEMP

BANKSEL 0

INCF STEP_INDEX,W ;index++

ANDLW 0x03 ;4 states

MOVWF STEP_INDEX

CALL FullStep ;retrieve value

IORWF C_TEMP,W

MOVWF PORTC ;set port C

BANKSEL STEPS_TAKEN

INCF STEPS_TAKEN,F

RETURN

; Step Backwards

StepReverse

BANKSEL PORTC

MOVF PORTC,W

ANDLW b'11110000'

MOVWF C_TEMP

BANKSEL 0

DECF STEP_INDEX,W ;index--

ANDLW 0x03 ;4 states

MOVWF STEP_INDEX

CALL FullStep ;retrieve value

IORWF C_TEMP,W

MOVWF PORTC ;set port C

BANKSEL STEPS_TAKEN

DECF STEPS_TAKEN,F

RETURN

StepperAtLimit:

; Clear any steps left to take

; This allows immediate response

; to steps in opposite direction

BANKSEL STEPS_LEFT

CLRF STEPS_LEFT

TurnStepperOffTimer:

; Time to de-energixe stepper after no use

BANKSEL STEP_OFF_COUNT

INCFSZ STEP_OFF_COUNT,F

RETURN

TurnStepperOff:

; Preserve vals on Port C not used for stepper

BANKSEL PORTC

MOVF PORTC,W

ANDLW b'11110000'

MOVWF C_TEMP

BANKSEL 0

MOVLW STEP_OFF

IORWF C_TEMP,W

MOVWF PORTC ;set port C

RETURN

TurnStepperOn:

BANKSEL 0

MOVF STEP_INDEX,W ;get index

CALL FullStep ;retrieve value

IORWF C_TEMP,W

MOVWF PORTC ;set port C

RETURN

; Parse a single byte into led, servo, stepper command

PARSE:

STEP_CMD:

BANKSEL PARSE_REG

BTFSS PARSE_REG,4

GOTO ReverseCommand

GOTO ForwardCommand

ReverseCommand:

BTFSS PARSE_REG,5 ; Reject 00

GOTO SERVO_CMD ;Ignore if not forward or reverse step

BANKSEL STEP_DIR

BCF STEP_DIR,0

INCF STEPS_LEFT,1 ;Take 1 step reverse

GOTO SERVO_CMD

ForwardCommand:

BTFSC PARSE_REG,5 ; Reject 11

GOTO SERVO_CMD

BANKSEL STEP_DIR

BSF STEP_DIR,0

INCF STEPS_LEFT,1 ;Take 1 step forward

GOTO SERVO_CMD

SERVO_CMD:

; Take 4 LSBs

; Add Offset

BANKSEL PARSE_REG

MOVF PARSE_REG,0

ANDLW DUTY_MASK

ADDLW PULSE_WIDTH_OFFSET

MOVWF PULSE_WIDTH

RETURN

; Arbitrary long delay

LONG_DELAY:

CALL DELAY

CALL DELAY

CALL DELAY

CALL DELAY

CALL DELAY

RETURN

DELAY:

movlw 0xFF

movwf TMR_COUNTER

LOOP3:

movlw 0xFF

movwf TMR_COUNTER2

LOOP2:

decfsz TMR_COUNTER2,f

goto LOOP2

decfsz TMR_COUNTER,f

goto LOOP3

return

; Initialization sequence

InitPins:

; Set Ports A and C to digital

BANKSEL ANSEL

CLRF ANSEL

CLRF ANSELH

; Set Data Directions

BANKSEL TRISA

CLRF TRISA

CLRF TRISB

CLRF TRISC

BSF TRISC,6 ; SS

BSF TRISB,5 ; SS

BSF TRISB,6 ; CLK

BSF TRISB,4 ; SDI

; Clear all PWM values

BANKSEL PARSE_REG

CLRF PARSE_REG

; Clear PORTA

BANKSEL PORTA

CLRF PORTA

RETURN

InitSSP:

BANKSEL SSPSTAT

CLRF SSPSTAT ;SMP = 0, CKE = 0

BANKSEL SSPCON

BSF SSPCON,SSPEN

BSF SSPCON,CKP

BSF SSPCON,SSPM2

; CKP = 1

; SS enabled, Slave

; Read and write buffer once to make sure its fresh

BANKSEL SSPBUF

MOVF SSPBUF,W

MOVWF SSPBUF

RETURN

END

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

iButton Reading Pseudocode

Purpose – Two wait for an iButton to be attached and then read out the first three bytes of its serial number

Configuration:

· No watchdog timer

· High speed, external oscillator. Crystal @ 20 MHz

Module-level Defines:

· IBUTTON_PORT, port A,B, or C where iButton com happens

· IBUTTON_PIN, pin on A,B, or C where iButton com happens

· TRISIBUTTON, link to data direction register for that port

· IBUTTON_INPUT, what to write to TRIS to set to input

· IBUTTON_OUTPUT, what to write to TRIS to set to output

· IBUTTON_HI , what to write to PORT to set HI

· IBUTTON_LO, what to write to PORT to set LO

· FIRST_BYTE, register to place first read byte in

· SECOND_BYTE, register for second byte

· THIRD_BYTE, register for third byte

· TEMP, temporary location for operations on received bytes

Main:

· Set Port to digital

· Set Pin to output

· Set Pin LO

· Wait 500 us

· Set Pin input

· Check if Pin is LO

§ Yes à continue

§ No à repeat from Main

· Conduct a Reset:

§ Set Pin to output

§ Set Pin LO

§ Wait 500 us

§ Set Pin HI

§ Wait 500 us

· Command ReadROM

§ Send HI

· Set Pin to output

· Set Pin LO

· Wait 5 us

· Set Pin to input

· Wait 70 us

§ Send HI

§ Send LO

· Set Pin output

· Set Pin LO

· Wait 60 us

· Set Pin input

· Wait 15 us

§ Send LO

§ Send HI

§ Send HI

§ Send LO

§ Send LO

· Read three bytes one bit at a time, save in appropriate registers

§ Each bit:

· Set Pin to output

· Set Pin LO

· Wait 5 us

· Set Pin to input

· Wait 10 us

· Test Pin

o If HI à bit is HI. Store it

o If LO à bit is LO. Store it

· Wait 60 us

list P=PIC16F690

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

iButton Reading Code Listing

list P=PIC16F690

#include "p16F690.inc"

__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC & _MCLRE_OFF)

org 0

GOTO LoadIButtonBytes

org 5

; Read iButton on the following PIN of the following PORT

IBUTTON_PORT equ PORTA

IBUTTON_PIN equ 0

; Register to set direction of PIN for iButton

TRISIBUTTON equ TRISA

; Value to set iButton HI, LO, input, or output

IBUTTON_INPUT equ 0x01

IBUTTON_OUTPUT equ 0x00

IBUTTON_HI equ 0x01

IBUTTON_LO equ 0x00

; Location to store each byte from iButton serial no.

FIRST_BYTE equ 0x20

SECOND_BYTE equ 0x21

THIRD_BYTE equ 0x22

; Temp directory for operations on bytes

TEMP equ 0x23

LoadIButtonBytes:

; Set Ports A and C to digital

BANKSEL ANSEL

CLRF ANSEL

CLRF ANSELH

WaitForIButton:

;CALL MakeIBUTTONOutput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_OUTPUT

MOVWF TRISIBUTTON

;CALL LowerIBUTTON

BANKSEL IBUTTON_PORT

BCF IBUTTON_PORT,IBUTTON_PIN

CALL Wait500us

;CALL MakeIBUTTONInput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_INPUT

MOVWF TRISIBUTTON

CALL Wait50us

; Check if pin is LO --> iButton Present

BANKSEL IBUTTON_PORT

BTFSC IBUTTON_PORT,IBUTTON_PIN

GOTO WaitForIButton ;Repeat until found

; Once found then:

CALL ConductReset

; Send Read ROM command

CALL ReadROM

; Read first 8 bits

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

; Move this first byte from third_byte to first_byte

BANKSEL THIRD_BYTE

MOVF THIRD_BYTE,0

MOVWF FIRST_BYTE

; Rwad 8 bits of second byte

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

; Move second received byte from third_byte to second_byte

BANKSEL THIRD_BYTE

MOVF THIRD_BYTE,0

MOVWF SECOND_BYTE

; Read 8 bits of third byte --> already saved in correct place

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

CALL ReadBit

; Wait 200 us before continuing

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

; Repeat forever

GOTO WaitForIButton

ConductReset:

; CALL MakeIBUTTONOutput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_OUTPUT

MOVWF TRISIBUTTON

; CALL LowerIBUTTON

BANKSEL IBUTTON_PORT

BCF IBUTTON_PORT,IBUTTON_PIN

CALL Wait500us

; CALL RaiseIBUTTON

BANKSEL IBUTTON_PORT

BSF IBUTTON_PORT,IBUTTON_PIN

CALL Wait500us

RETURN

ReadROM:

; Send ReadROM command

; Need to send 0x33 = 00110011, LSB first

CALL SendIBUTTONHI

CALL SendIBUTTONHI

CALL SendIBUTTONLO

CALL SendIBUTTONLO

CALL SendIBUTTONHI

CALL SendIBUTTONHI

CALL SendIBUTTONLO

CALL SendIBUTTONLO

RETURN

ReadBit:

; Begin reading

; CALL MakeIBUTTONOutput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_OUTPUT

MOVWF TRISIBUTTON

; CALL LowerIBUTTON

BANKSEL IBUTTON_PORT

BCF IBUTTON_PORT,IBUTTON_PIN

CALL Wait5us

; CALL MakeIBUTTONInput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_INPUT

MOVWF TRISIBUTTON

CALL Wait5us

CALL Wait5us

; Check if line is HI or LO

BANKSEL IBUTTON_PORT

BTFSC IBUTTON_PORT,IBUTTON_PIN

GOTO RECEIVE_BIT_HI

GOTO RECEIVE_BIT_LO

RECEIVE_BIT_HI:

; Rotate into place this received vbit

BANKSEL THIRD_BYTE

RRF THIRD_BYTE,1

NOP

NOP

BSF THIRD_BYTE,7

; Wait 60 us

CALL Wait60us

RETURN

RECEIVE_BIT_LO:

; Rotate into place this received vbit

BANKSEL THIRD_BYTE

RRF THIRD_BYTE,1

NOP

NOP

BCF THIRD_BYTE,7

; Wait 60 us

CALL Wait60us

RETURN

SendIBUTTONHI:

; CALL MakeIBUTTONOutput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_OUTPUT

MOVWF TRISIBUTTON

; CALL LowerIBUTTON

BANKSEL IBUTTON_PORT

BCF IBUTTON_PORT,IBUTTON_PIN

CALL Wait5us

; CALL MakeIBUTTONInput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_INPUT

MOVWF TRISIBUTTON

CALL Wait70us

RETURN

SendIBUTTONLO:

; CALL MakeIBUTTONOutput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_OUTPUT

MOVWF TRISIBUTTON

; CALL LowerIBUTTON

BANKSEL IBUTTON_PORT

BCF IBUTTON_PORT,IBUTTON_PIN

CALL Wait60us

; CALL MakeIBUTTONInput

BANKSEL TRISIBUTTON

MOVLW IBUTTON_INPUT

MOVWF TRISIBUTTON

CALL Wait5us

CALL Wait5us

CALL Wait5us

RETURN

Wait5us:

; Use NOPs for most reliable timing

; takes 18 NOPs for 5 us

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

RETURN

Wait1s:

; Not actually 1 sec, just a long time

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

CALL Wait500us

Wait500us:

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

CALL Wait50us

; requires some tuning because of rounding errors

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

RETURN

Wait50us:

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

; requires some tuning because of rounding errors

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

RETURN

Wait70us:

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

; requires some tuning because of rounding errors

NOP

NOP

NOP

NOP

NOP

NOP

NOP

NOP

RETURN

Wait60us:

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

CALL Wait5us

; requires some tuning because of rounding errors

CALL Wait5us

RETURN

ENDORT,SHIFT_CLOCK_BIT

nop

nop

bcf SHIFT_PORT,SHIFT_CLOCK_BIT

return

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

SPIMaster Pseudocode

Purpose – A stand-alone module to test the ability to send data by SPI from a PIC16F690.

Configuration:

· No watchdog timer

· High speed, external oscillator. Crystal @ 20 MHz

Module-level Variables:

· TX_BYTE, register used to store the byte for master to send out

· RX_BYTE, register to store byte received from slave

· COUNTER, register for a for-loop counter

· COUNTER2, register for a for-loop counter

Main:

· Wait a while for the chip to start-up completely

· Initialize pins:

§ Set Ports A,B, and C to digital

§ Set Ports A,B, and C to outputs

§ Data input (SDI) line is automatically made input

· Initialize SSP:

§ Set SMP = 0, CKE = 0, CKP = 1

§ Set clock speed to TMR2/2

§ Set to master

· Initialize Timer2:

§ Set prescaler and postscaler to get period ~250 us

§ Enable timer2

· Place a desired byte to transmit into TX_BYTE

· Transmit Byte:

§ Clear not slave select line for desired slave PIC

§ Load SSP Buffer with TX_BYTE

§ Wait for the transfer to complete

§ Place the received byte into RX_BYTE

· Wait a while and then repeat transmit (possibly with a different byte)

Back to Top!

----------------------------------------------------------------------------------------------------------------------------------------------------------------

----------------------------------------------------------------------------------------------------------------------------------------------------------------

SPIMaster Code Listing

list P=PIC16F690

#include "p16F690.inc"

__config (_CP_OFF & _WDT_OFF & _PWRTE_ON & _HS_OSC)

org 0

GOTO Main

org 5

TX_BYTE equ 0x20 ; Register for byte to send

RX_BYTE equ 0x21 ; Register for received byte

COUNTER equ 0x22 ; Index for for-loop

COUNTER2 equ 0x23 ; Index for for-loop

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

Main:

CALL Wait1sec ; Wait for PIC to start-up completely

CALL InitPins ; Initialize pins

CALL InitSSP ; Intialize SPI

BANKSEL TX_BYTE

movlw b'10001011'

MOVWF TX_BYTE

CALL Transmit

CALL Wait1sec

SendAndReceive:

BANKSEL RX_BYTE

movf RX_BYTE,W

MOVWF TX_BYTE

CALL Transmit

CALL Wait1sec

GOTO SendAndReceive

Transmit:

; Move byte to send into W

BANKSEL TX_BYTE

MOVF TX_BYTE,0

; Place byte in SSP buffer

BANKSEL SSPBUF

MOVWF SSPBUF ;Send Data

BANKSEL SSPSTAT

BTFSS SSPSTAT,BF ;Wait for receive complete

GOTO $-1

; Put received data into RX_BYTE

BANKSEL SSPBUF ;Get received data

MOVF SSPBUF,W

BANKSEL RX_BYTE

MOVWF RX_BYTE

RETURN

; Initialization sequence

InitPins:

; Set Ports A, B, C to digital

BANKSEL ANSEL

CLRF ANSEL

CLRF ANSELH

BANKSEL TRISA

CLRF TRISA

BANKSEL TRISC

BCF TRISC,7 ;SDO

BANKSEL TRISB

BCF TRISB,6 ;SCK --> MASTER

BCF TRISB,5 ;SS manual

RETURN

InitSSP:

BANKSEL SSPSTAT

CLRF SSPSTAT ;SMP = 0, CKE = 0

BANKSEL SSPCON

MOVLW 0x33 ;SSPEN, CKP=1, TMR2/2, Master

MOVWF SSPCON

; Set up timer 2 with period ~250 us

BANKSEL PR2

MOVLW 0x30

MOVWF PR2

BANKSEL T2CON

MOVLW b'00000111'

MOVWF T2CON

; Read and write SSPBUF once to clear out bad data

BANKSEL SSPBUF

MOVF SSPBUF,0

MOVLW 0xFF

MOVWF SSPBUF

RETURN

; Sets the slave select line to choose the PIC controlling the propeller and pump

TalkToProp:

BANKSEL PORTB

BSF PORTB,5

RETURN

; Sets the slave select line to choose the PIC controlling the rudder and turret

TalkToRudder:

BANKSEL PORTB

BCF PORTB,5

RETURN

Wait1sec:

; Arbitrarily long delay - BLOCKING CODE!

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

CALL WaitAWhile

RETURN

WaitAWhile:

BANKSEL COUNTER

CLRF COUNTER

CLRF COUNTER2

LOOP INCFSZ COUNTER,1 ; i++

GOTO LOOP

INCFSZ COUNTER2,1 ; j++

GOTO LOOP

RETURN

END

Back to Top!
